Keysight (Agilent) 87106C
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Configuration | 6x2 Coaxial Switch Module |
| Connector Type | 2.4 mm (f) |
| Insertion Loss | ≤ 3.0 dB at 26.5 GHz |
| Isolation | ≥ 70 dB at 26.5 GHz |
| VSWR | ≤ 2.0:1 at 26.5 GHz |
| Switching Speed | ≤ 20 ms (typical) |
| Operating Temperature | 0°C to 55°C |
| Interface Compatibility | Compatible with Keysight 8714x Series and VXI Mainframes |
| Power Handling | 1 W average, 100 W peak maximum RF input power |
| Model | 87106C |
|---|

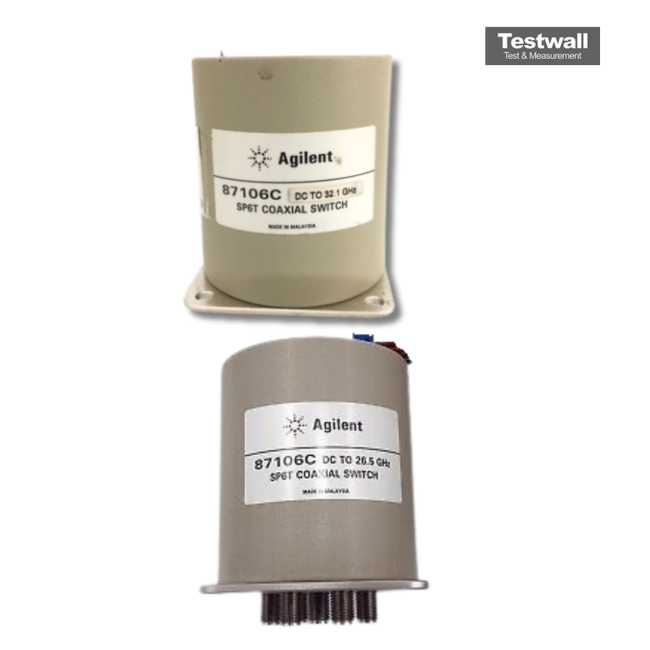

The Keysight (Agilent) 87106C is a high-performance SP6T multiport switch with magnetic latching and terminated ports, delivering excellent RF repeatability and isolation above 90 dB at 26.5 GHz. With an operational life of 10 million cycles and guaranteed 0.03 dB repeatability up to 5 million cycles, it ensures precision in ATS systems.
Ideal for signal routing, monitoring, and automated test systems, this switch includes opto-electronic indicators, interrupts, and TTL/5V CMOS compatibility.
Testwall can supply the used Keysight (Agilent) 87106C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87106C.
