Keysight (Agilent)

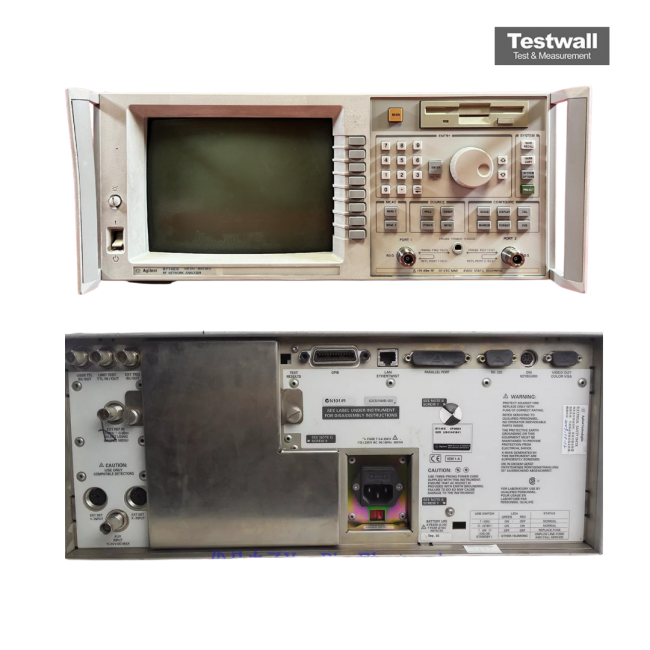

Keysight (Agilent) 8714ES
300KHz-3GHz Vector Network Analyser with S Parameter Test Set
300 kHz to 3 GHz Frequency Range
-60 dBm to +20 dBm Output Power Range
Greater than 95 dB Dynamic Range
S11, S21, S22, S12 (Full 2-Port S-Parameters) Measurement Parameters
2 Number of Test Ports
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Output Power Range | -60 dBm to +20 dBm |
| Dynamic Range | Greater than 95 dB |
| Measurement Parameters | S11, S21, S22, S12 (Full 2-Port S-Parameters) |
| Number of Test Ports | 2 |
| IF Bandwidth | 10 Hz to 3 kHz |
| Display | 10.4-inch color LCD |
| Number of Data Points | 3 to 1601 points per sweep |
| Connector Type | N-Type (50 Ohm) |
| Calibration Standards | Full 2-Port SOLT, TRL, LRM, and adapter removal |
| Model | 8714ES |
|---|
The Keysight (Agilent) 8714ES Network Analyzer delivers full two-port S-parameter testing with vector-error correction, supporting accurate transmission and reflection measurements over a 300 kHz to 3 GHz frequency range. It features dual independent channels for simultaneous display of measurements like S11 and S21 in rectangular, Smith chart, or polar formats. The integrated synthesized source offers 1 Hz resolution, and the built-in 60 dB attenuator provides 70 dB of power-level control for precise testing of active and passive components.
With narrowband and broadband detection modes, a dynamic range of 100 dB, and real-time sweep speeds of 40 ms per sweep, the 8714ES supports fast, flexible network characterization. Standard features include a LAN interface, IBASIC programming support, and compatibility with 2-, 6-, and 12-port switching test sets.
Testwall can supply the used Keysight (Agilent) 8714ES, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8714ES.
