Keysight (Agilent) 87422A
| Attribute | Value |
|---|---|
| Frequency Range | 2 to 26.5 GHz |
| Power Supply Voltage | +15 VDC to +24 VDC |
| Gain | 26 dB minimum |
| Noise Figure | 8 dB maximum |
| Output Power at 1 dB Compression | +10 dBm minimum |
| Connector Type | 2.4 mm (female) |
| Current Consumption | 350 mA maximum |
| Operating Temperature Range | 0°C to +55°C |
| VSWR (Input/Output) | 2.0:1 maximum |
| Device Type | Preamplifier |
Keysight (Agilent) 87422A Options:
- 83006A - 83006A - Microwave System Amplifier, 0.01 to 26.5 GHz
- 83017A - 83017A - Microwave System Amplifier, 0.5 to 26.5 GHz
- 83018A - 83018A - Microwave System Amplifier, 2 to 26.5 GHz
- 83020A - 83020A - Microwave System Power Amplifier, 2 to 26.5 GHz
- 87415A - 87415A - Microwave System Amplifier, 2 to 8 GHz
- 83440C - 83440C - High Speed Lightwave Converter, dc to 20 GHz, 1000 to 1600 mm
- 83440-60009 - 83440-60009 - Lightwave Converter Power Supply Adapter
| Model | 87422A |
|---|

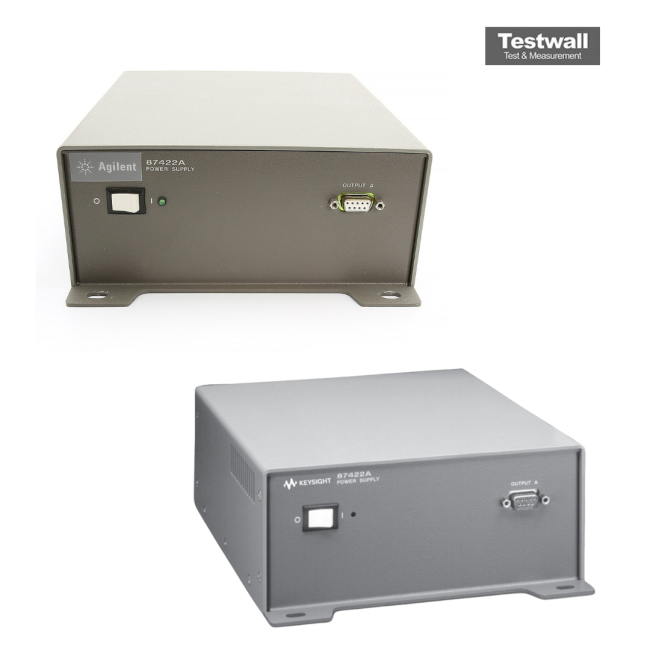

The Keysight (Agilent) 87422A is a 90-watt universal DC switching power supply tailored for powering microwave system amplifiers like the Agilent 83020A. It delivers precise outputs of ±15V and ±12V with currents up to 3.3A, ideal for seamless benchtop or system integration. A compact form and included two-meter DC bias cables enable remote amplifier positioning, ensuring flexible and space-efficient configurations.
Optimized to power Agilent preamps such as the 83006A or 83017A, this unit offers reliable voltage delivery, allowing remote equipment setup without compromising performance or accessibility.
Testwall can supply the used Keysight (Agilent) 87422A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 87422A.
