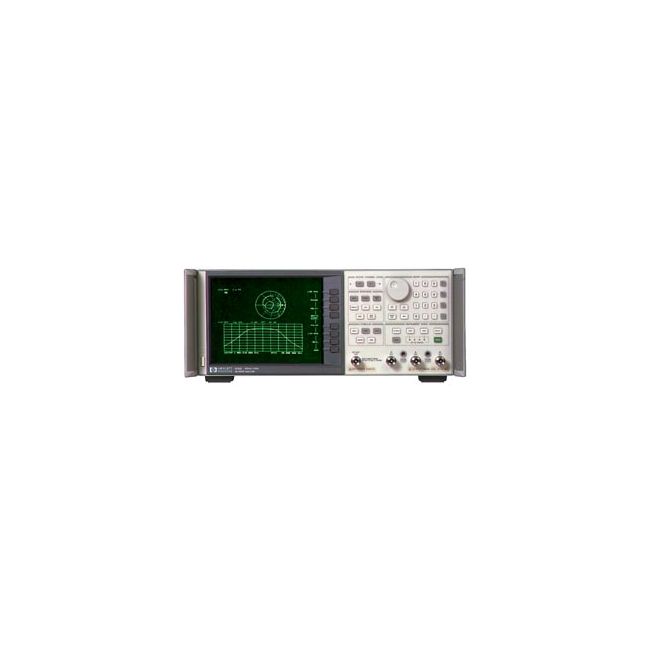

Keysight (Agilent) 8753B
300KHz-3GHz Vector Network Analyser
300 kHz to 3 GHz Frequency Range
S-parameters (S11, S21, S12, S22), impedance, admittance, reflection, transmission Measurement Parameters
Up to 100 dB Dynamic Range
-85 dBm to +20 dBm Output Power Range
3 to 1601 points per sweep Number of Data Points
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, reflection, transmission |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -85 dBm to +20 dBm |
| Number of Data Points | 3 to 1601 points per sweep |
| Sweep Time | 15 ms minimum (fast sweep mode) |
| Impedance | 50 Ohm standard (75 Ohm optional) |
| Display | Color CRT display with multiple trace formats including log magnitude, phase, Smith chart, and polar |
| Interface/Connectivity | GPIB (IEEE-488), compatible with external disk drives and printers |
| Calibration | Full 2-port, 1-port, response, and TRL/LRM calibration supported |
| Model | 8753B |
|---|
The Keysight (Agilent) 8753B Network Analyzer enables high-precision RF measurements from 300 kHz to 6 GHz. It features an integrated synthesized source with 100 mW output, 1 Hz frequency resolution, and multiple sweep types including linear, log, and CW. Three independently tuned receivers support both power and ratio measurements with up to 100 dB dynamic range and 0.05 dB dynamic accuracy over a 40 dB span. Capable of swept harmonic and time-domain analysis, it offers a comprehensive toolset for RF testing.
The analyzer supports advanced functionality with options like harmonic measurement (002), 6 GHz receiver (006), and time domain capability (010), alongside rackmount kits and dual disk storage.
Testwall can supply the used Keysight (Agilent) 8753B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8753B.
