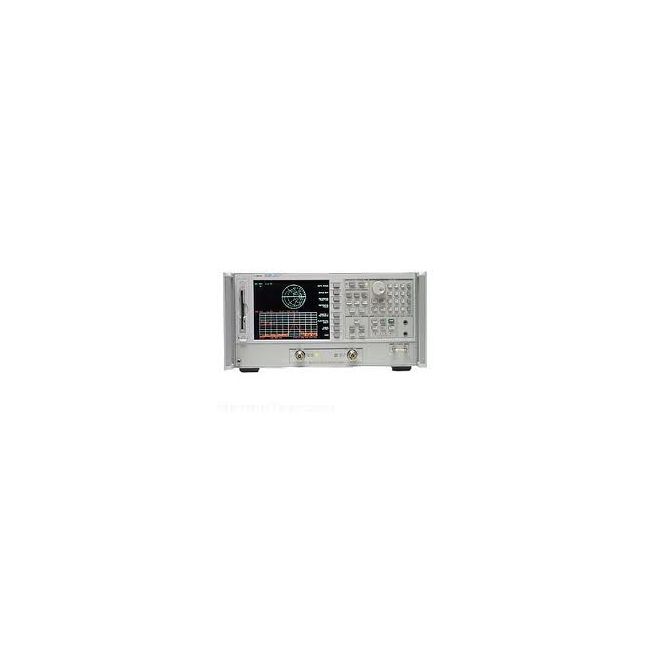

Keysight (Agilent) 8753E
30KHz-3GHz Vector Network Analyser with S Parameter Test Set
300 kHz to 3 GHz (extendable to 6 GHz) Frequency Range
2-Port Vector Network Analyzer Number of Ports
Up to 100 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
S-parameters (S11, S21, S12, S22), impedance, admittance, and group delay Measurement Parameters
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz (extendable to 6 GHz) |
| Number of Ports | 2-Port Vector Network Analyzer |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, and group delay |
| Display | 10.4-inch color LCD display |
| Number of Data Points | 3 to 1601 points per sweep |
| Interface/Connectivity | GPIB (IEEE-488), RS-232, and parallel port interfaces |
| Sweep Types | Linear frequency, log frequency, power, and CW time sweep |
| Calibration | Full 2-port, 1-port, response, and TRL/LRM calibration supported |
Keysight Technologies 8753E Options:
- 8753E - 006 - 6 GHz operation; performance specified over 30 kHz to 6 GHz range
- 8753E - 011 - Removes integrated test set; provides external test set configuration with higher output power (+20 dBm)
- 8753E - 075 - 75-ohm impedance; type-N test ports
- 8753E - 002 - Harmonic measurements; measures amplifier 2nd and 3rd harmonics on swept-frequency basis
- 8753E - 010 - Time domain; converts frequency domain data to time domain using Fourier transformation
- 8753E - 1D5 - High-stability frequency reference; adds ovenized 10 MHz frequency reference output
| Model | 8753E |
|---|
The Keysight (Agilent) 8753E Network Analyzer combines high speed and performance to deliver reliable RF analysis from 30 kHz to 3 GHz, expandable to 6 GHz with option 006. It features an integrated S-parameter test set with solid-state switching, up to 110 dB of dynamic range, and supports both frequency and power sweeps. With a large color LCD, VGA output, and rapid data transfer capabilities, it provides an efficient interface for evaluating both active and passive components.
The analyzer supports real-time display of all four S-parameters, built-in state and data recall via floppy-disk drive, and is compatible with optional harmonic and time domain measurements for expanded versatility.
Testwall can supply the used Keysight (Agilent) 8753E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8753E.
