Keysight (Agilent)

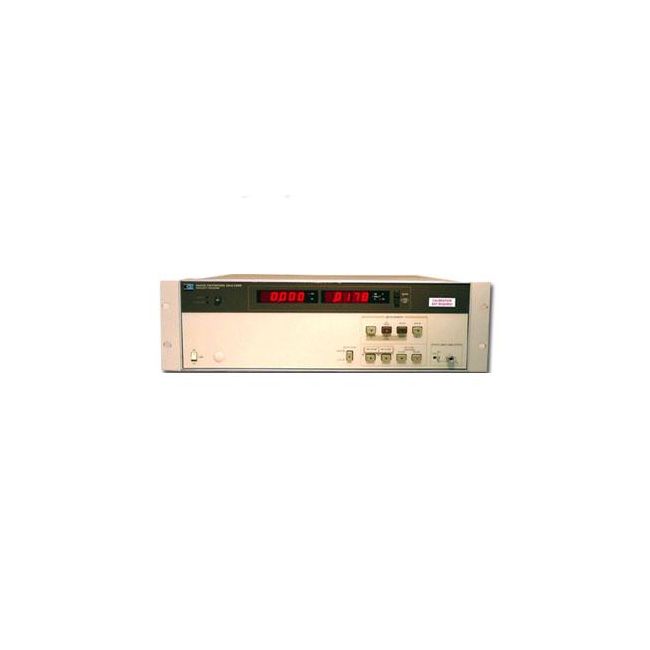

Keysight (Agilent) 8903E
20Hz-100KHz Distortion Analyser
20 Hz to 100 kHz Frequency Range
0.00018% to 100% THD Distortion Measurement Range
0 to 100 dB Signal-to-Noise Ratio Measurement Range
100 µV to 300 V rms AC Level Measurement Range
±0.1 mV to ±450 V DC Level Measurement Range
| Attribute | Value |
|---|---|
| Frequency Range | 20 Hz to 100 kHz |
| Distortion Measurement Range | 0.00018% to 100% THD |
| Signal-to-Noise Ratio Measurement Range | 0 to 100 dB |
| AC Level Measurement Range | 100 µV to 300 V rms |
| DC Level Measurement Range | ±0.1 mV to ±450 V |
| Output Frequency Range | 20 Hz to 100 kHz |
| Output Level Range | 0.6 mV to 6 V rms |
| Output Distortion | Less than 0.0018% THD (20 Hz to 20 kHz) |
| Input Impedance | 100 kΩ, 100 pF |
| Interface | HP-IB (IEEE 488) / GPIB |
| Model | 8903E |
|---|
The Keysight (Agilent) 8903E Audio Analyzer delivers multi-function performance for audio measurements in the 20 Hz to 100 kHz range. It integrates a high-performance distortion analyzer, frequency counter, AC and DC voltmeters, and SINAD meter in one compact unit. With automatic tuning and autoranging, the 8903E ensures high accuracy and resolution. Its intuitive interface allows most measurements with one or two keystrokes. The unit also displays the input frequency in all AC measurement modes, enabling fast and precise signal identification during testing.
Ideal for audio testing in production, R&D, or service environments, the 8903E simplifies complex analysis with fast setup and reliable output.
Testwall can supply the used Keysight (Agilent) 8903E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8903E.
