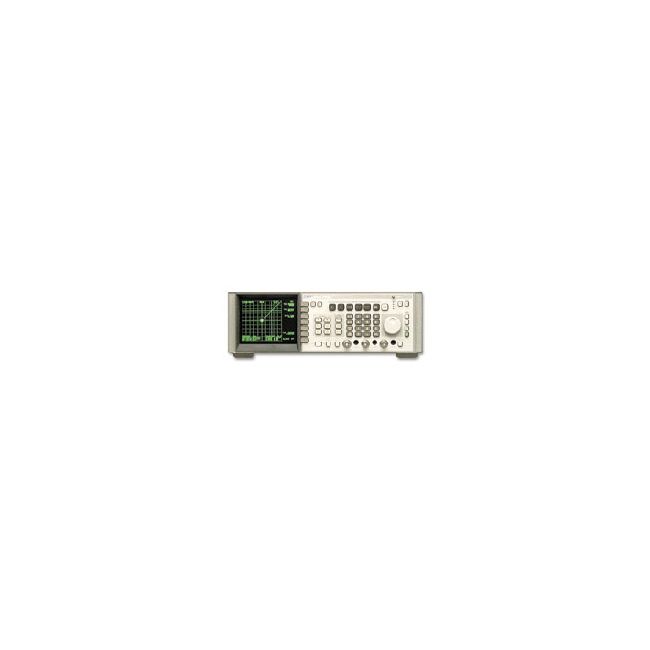

Keysight (Agilent) 8981A
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 2 GHz |
| Noise Figure Measurement Range | 0 to 30 dB |
| Gain Measurement Range | -10 to 40 dB |
| Measurement Uncertainty | ±0.3 dB typical |
| Input Impedance | 50 Ohms |
| Display Type | Built-in CRT display |
| Interface | HP-IB (GPIB) compatible |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Operating Temperature | 0°C to 55°C |
| Instrument Type | Noise Figure Meter/Analyzer |
| Model | 8981A |
|---|
The Keysight (Agilent) 8981A Vector Modulation Analyzer includes a calibrated baseband analyzer and a vector demodulator for IF measurements. It supports 50 MHz to 200 MHz I/Q demodulation and demodulates communication signals up to 70 MHz bandwidth. The unit achieves <0.5° quadrature error and <0.1 dB amplitude imbalance, ensuring accurate magnitude and phase signal analysis.
Ideal for analyzing standard digital communication and radar signals, the 8981A provides quick, visual diagnostics and precise modulation data, identifying issues like quadrature error and closure.
Testwall can supply the used Keysight (Agilent) 8981A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 8981A.
