Keysight (Agilent) B1500A
| Attribute | Value |
|---|---|
| Number of Slots | 10 slots for measurement modules |
| Voltage Measurement Range | 0.5 µV to 200 V |
| Current Measurement Range | 1 fA to 1 A |
| Minimum Current Resolution | 1 fA |
| Maximum Output Voltage | 200 V DC |
| Maximum Output Current | 1 A DC |
| Supported Measurement Types | IV, CV, pulsed IV, impedance, and wafer-level reliability (WLR) |
| Interface/Connectivity | GPIB, USB, and LAN (LXI compliant) |
| Power Supply Input | 100–240 V AC, 50/60 Hz |
| Operating Temperature Range | 5°C to 40°C (41°F to 104°F) |
Keysight (Agilent) B1500A Options:
- B1500A - 015 - 1.5m cable (Cable length is set to 1.5m for standard and add-on packages)
- B1500A - 030 - 3.0m cable (Cable length is set to 3.0m for standard and add-on packages)
- B1500A - 050 - 50 Hz line frequency
- B1500A - 060 - 60 Hz line frequency
- B1500A - A6J - ANSI Z540 compliant calibration
- B1500A - UK6 - Commercial calibration certificate with test data
- B1500A - ABA - English paper document
- B1500A - ABJ - Japanese paper document
- B1500A - A00 - Empty Package for Custom Solution
- B1500A - A01 - Standard Package (MPSMU 4ea. & Cables)
- B1500A - A02 - High Resolution Package (HRSMU 4ea & Cables)
- B1500A - A03 - High Power Package (HPSMU 2ea, MPSMU 2ea & Cables)
- B1500A - A04 - Basic Flash Memory Cell Package (MPSMU 2ea, HRSMU 2ea, SPGU, Accessories)
- B1500A - A10 - HPSMU Add-on (HPSMU 1ea. & Cables)
- B1500A - A11 - MPSMU Add-on (MPSMU 1ea. & Cables)
- B1500A - A17 - HRSMU Add-on (HRSMU 1ea. & Cables)
- B1500A - A1A - MCSMU Add-on (MCSMU 1ea. connection box & cables)
- B1500A - A1B - MCSMU Add-on (MCSMU 2ea. connection box & cables)
- B1500A - A20 - MFCMU Add-on (MFCMU, Cable)
- B1500A - A25 - HVSPGU Add-on (HVSPGU 1ea. & Cables)
- B1500A - A28 - ASU (Atto Sense Unit) Add-on for HRSMU (ASU 1ea. & Cables)
- B1500A - A29 - ASU (Atto-sense and switch unit) Add-on for MPSMU (ASU 1ea. & Cables)
- B1500A - A30 - WGFMU Add-on (WGFMU 1ea. RSU 2ea. & Cables)
- B1500A - A31 - WGFMU Add-on with Connector Adapter (WGFMU 1ea, RSU 2ea, Cables & Connector Adapter)
- B1500A - A3P - WGFMU probe cable kit (8 probe cables. WGFMU is not included.)
- B1500A - A5F - Test fixture for packaged device measurement (16442B 1ea)
| Model | B1500A |
|---|

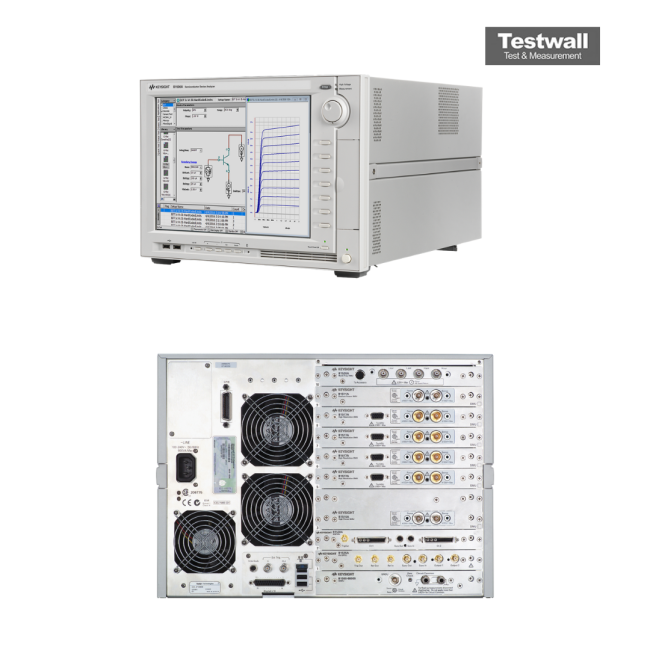

The Keysight (Agilent) B1500A Semiconductor Parameter Analyzer is a comprehensive device characterization solution that supports IV, CV, pulse/dynamic IV, and more. It includes a modular mainframe that accommodates up to 10 measurement module slots, offering high flexibility. Featuring a 15-inch intuitive touchscreen and EasyEXPERT group+ software, it enables efficient data analysis without an external PC. The B1500A allows seamless switching between CV and IV measurements, captures ultra-fast transients, and supports multi-frequency AC capacitance from 1 kHz to 5 MHz.
This analyzer is ideal for evaluating semiconductors, materials, and both active and passive electronic components. Its modular structure ensures easy upgrades and adaptation to various test configurations.
Testwall can supply the used Keysight (Agilent) B1500A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) B1500A.
