Keysight (Agilent) CX1101A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 3 GHz |
| Number of Ports | 2 |
| Dynamic Range | up to 100 dB |
| Output Power | -45 to 0 dBm |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance |
| Interface/Connectivity | USB |
| Display | PC-based software (no built-in display) |
| Connector Type | SMA (female) |
| Power Supply | USB powered (no external power supply required) |
| Operating Temperature | 0 °C to 55 °C |
Keysight (Agilent) CX1101A Options:
- CX1101A - A6J - ANZI Z540-1-1994 Calibration
- CX1101A - UK6 - Commercial Calibration Certificate with Test Data
| Model | CX1101A |
|---|

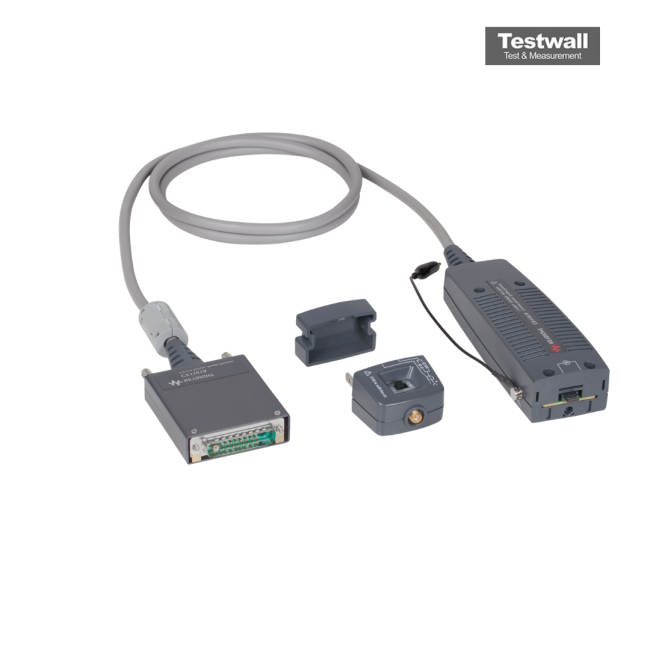

The Keysight (Agilent) CX1101A is a precision single-channel current sensor designed for demanding applications, supporting measurements from 40 nA to 1 A with a 100 MHz bandwidth and common mode voltage range up to ±12 V. It includes a CX1203 Sensor Head and supports low input resistance of 410 mΩ, with optional extension up to 10 A using the CX1206A Sensor Head.
This current sensor enables accurate, noise-suppressed low-level current waveform capture with a wideband measurement range, suited for high-precision electronics testing and diagnostics. Easy setup with included accessories ensures immediate usability.
Testwall can supply the used Keysight (Agilent) CX1101A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) CX1101A.
