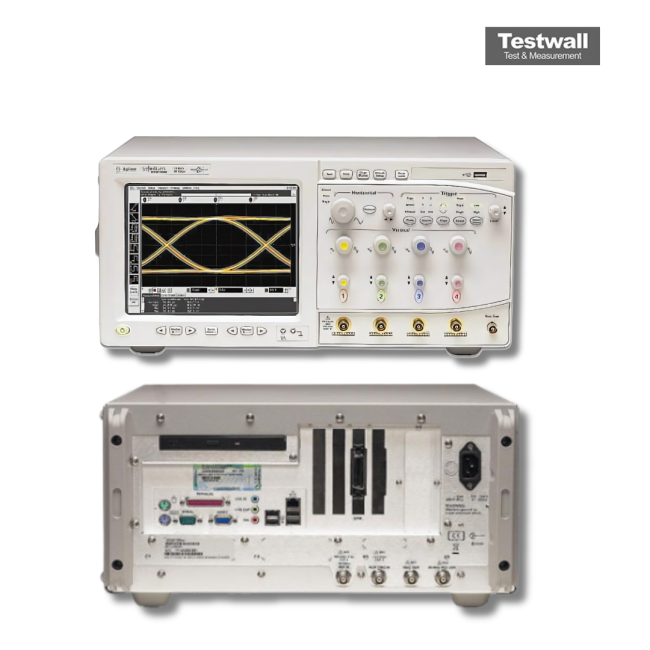

Keysight (Agilent) DSA81204B
| Attribute | Value |
|---|---|
| Bandwidth | 12 GHz |
| Sample Rate | 40 GSa/s (single channel), 20 GSa/s (all channels) |
| Number of Channels | 4 |
| Vertical Resolution | 8 bits |
| Memory Depth | Up to 2 Gpts (with option) |
| Rise Time | 29.2 ps (typical) |
| Input Impedance | 50 Ohm |
| Display | 15-inch XGA color display |
| Operating System | Windows 7 |
| Connectivity | LAN, USB, GPIB |
Keysight (Agilent) DSA81204B Options:
- DSA81204B - 005 - Noise reduction software
- DSA81204B - 006 - My Infiniium integration package
- DSA81204B - 007 - Low-speed serial data analysis software for I2C and SPI
- DSA81204B - 008 - CAN serial data analysis software
- DSA81204B - 009 - InfiniiScan event identification software
- DSA81204B - 010 - Infiniium user-defined function (UDF) application software
- DSA81204B - 017 - Removable hard disk drive
- DSA81204B - A6J - ANSI Z540-compliant calibration
| Model | DSA81204B |
|---|
The Keysight (Agilent) DSA81204B is a high-performance digital signal analyzer built on the Infiniium DSO80000B Series, paired with the InfiniiMax probing system. It features advanced serial data analysis and EZJIT Plus jitter tools, offering 12 GHz bandwidth and deep memory for high-speed signal integrity testing.
Ideal for debugging and validating serial-data-based designs, it supports mask testing, 8b/10b decoding, and compliance checks for PCIe, SATA, SAS, Fibre Channel, XAUI, and Gigabit Ethernet.
Testwall can supply the used Keysight (Agilent) DSA81204B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSA81204B.
