Keysight (Agilent)

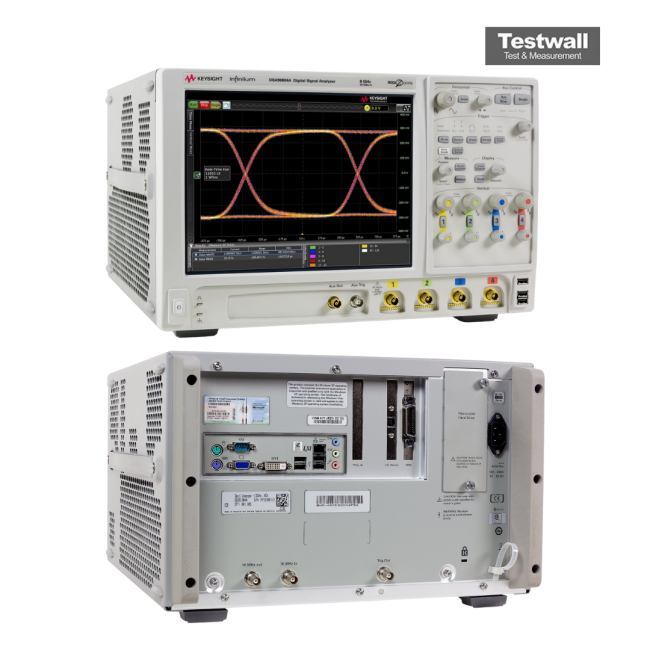

Keysight (Agilent) DSA90604A
4 Ch 6 GHz Digital Signal Analyzer
6 GHz Bandwidth
4 Number of Channels
20 GSa/s (single channel), 40 GSa/s (interleaved) Sample Rate
8 bits Vertical Resolution
Up to 2 Gpts (with memory option) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 6 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GSa/s (single channel), 40 GSa/s (interleaved) |
| Vertical Resolution | 8 bits |
| Memory Depth | Up to 2 Gpts (with memory option) |
| Rise Time | 58.3 ps |
| Input Impedance | 50 Ω |
| Noise Floor | Less than 1.5 mV RMS at 50 mV/div |
| Display | 15-inch XGA color display (1024 x 768 resolution) |
| Operating System | Windows XP Professional |
Keysight Technologies DSA90604A Options:
- DSA90604A - 001 - 80 GBytes or greater hard disk drive. Replaces internal hard disk drive with a removable hard disk drive.
- DSA90604A - 003 - High Speed Serial Data Analysis Software
- DSA90604A - 004 - EZJIT Plus Jitter Analysis Software
- DSA90604A - 005 - Noise Reduction and Bandwidth Control
- DSA90604A - 006 - My Infiniium Integration Package
- DSA90604A - 007 - I2C and SPI Low-speed Data Analysis
- DSA90604A - 008 - CAN Serial Data Analysis Software
- DSA90604A - 009 - InfiniiScan Event Identification Software
- DSA90604A - 010 - Infiniium User Defined Function Software
- DSA90604A - 011 - Infiniium Application Remote Program Interface Software
- DSA90604A - 020M - Acquisition memory upgrade 10 MPts to 20 MPts
- DSA90604A - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSA90604A - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSA90604A - 023 - HDMI Electrical Performance Validation and Compliance Software
- DSA90604A - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSA90604A - 025 - Fibre Channel Validation and Compliance Software
- DSA90604A - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSA90604A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSA90604A - 028 - DisplayPort Validation and Compliance Software
- DSA90604A - 029 - USB 2.0 Validation and Compliance Software
- DSA90604A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSA90604A - 031 - DDR1 Validation and Compliance Software
- DSA90604A - 032 - DDR2 Validation and Compliance Software
- DSA90604A - 033 - DDR3 Validation and Compliance Software
- DSA90604A - 1CM - Rackmount Kit
- DSA90604A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSA90604A - 805 - GPIB card
- DSA90604A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSA90604A - 900 - Power cord, United Kingdom
- DSA90604A - 901 - Power cord, Australia
- DSA90604A - 902 - Power cord, Europe
- DSA90604A - 903 - Power cord, United States
- DSA90604A - 906 - Power cord, Switzerland
- DSA90604A - 912 - Power cord, Denmark
- DSA90604A - 917 - Power cord, Africa
- DSA90604A - 918 - Power cord, Japan
- DSA90604A - 919 - Power cord, Israel
- DSA90604A - 920 - Power cord, Argentina
- DSA90604A - 921 - Power cord, Chile
- DSA90604A - 922 - Power cord, China
- DSA90604A - 927 - Power cord, Thailand
- DSA90604A - A6J - ANSI Z540 compliant calibration
- DSA90604A - 1A7 - ISO17025 compliant calibration
| Model | DSA90604A |
|---|
The Keysight (Agilent) DSA90604A Infiniium oscilloscope features 4 channels at 6 GHz and 20 GSa/s per channel. It includes up to 1 Gpt memory, EZJIT+ jitter tools, hardware de-embedding, and compliance analysis features.
Ideal for high-speed digital debugging and protocol validation.
Testwall can supply the used Keysight (Agilent) DSA90604A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSA90604A.
