Keysight (Agilent)
Keysight (Agilent) DSA91204A
4 Ch 12 GHz Digital Signal Analyzer
12 GHz Bandwidth
4 Number of Channels
40 GSa/s (single channel), 20 GSa/s (all channels) Sample Rate
8-bit (up to 12-bit with enhanced resolution) Vertical Resolution
Up to 2 Gpts (with memory option) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 12 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s (single channel), 20 GSa/s (all channels) |
| Vertical Resolution | 8-bit (up to 12-bit with enhanced resolution) |
| Memory Depth | Up to 2 Gpts (with memory option) |
| Rise Time | 33.3 ps |
| Input Impedance | 50 Ω |
| Noise Floor | Less than 1.5 mV RMS (at 50 mV/div) |
| Display | 15.3-inch XGA color display (1024 x 768 resolution) |
| Operating System | Windows XP Professional (embedded) |
Keysight Technologies DSA91204A Options:
- DSA91204A - 821 - Precision BNC to SMA adaptors (qty 2)
- DSA91204A - 801 - 80 GBytes or greater hard disk drive - Replaces internal hard disk drive with a removable hard disk drive
- DSA91204A - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSA91204A - 805 - GPIB card
- DSA91204A - 807 - High Impedance Adapter (includes one 10073C passive probe)
- DSA91204A - 1CM - Rackmount Kit
- DSA91204A - 002 - EZJIT Jitter Analysis Software
- DSA91204A - 003 - High Speed Serial Data Analysis Software
- DSA91204A - 004 - EZJIT Plus Jitter Analysis Software
- DSA91204A - 005 - Noise Reduction and Bandwidth Control
- DSA91204A - 006 - My Infiniium Integration Package
- DSA91204A - 007 - I2C and SPI Low-speed Data Analysis
- DSA91204A - 008 - CAN Serial Data Analysis Software
- DSA91204A - 009 - InfiniiScan Event Identification Software
- DSA91204A - 010 - Infiniium User Defined Function Software
- DSA91204A - 011 - Infiniium Application Remote Program Interface Software
- DSA91204A - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSA91204A - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSA91204A - 023 - HDMI Electrical Performance Validation and Compliance Software
- DSA91204A - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSA91204A - 025 - Fibre Channel Validation and Compliance Software
- DSA91204A - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSA91204A - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSA91204A - 028 - DisplayPort Validation and Compliance Software
- DSA91204A - 029 - USB 2.0 Validation and Compliance Software
- DSA91204A - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSA91204A - 031 - DDR1 Validation and Compliance Software
- DSA91204A - 032 - DDR2 Validation and Compliance Software
- DSA91204A - 033 - DDR3 Validation and Compliance Software
- DSA91204A - A6J - ANSI Z540 compliant calibration
- DSA91204A - 1A7 - ISO17025 compliant calibration
- DSA91204A - 20M - Acquisition memory upgrade 10 MPts to 20 MPts
- DSA91204A - 50M - Acquisition memory upgrade 20 MPts to 50 MPts
- DSA91204A - 100 - Acquisition memory upgrade 50 MPts to 100 MPts
- DSA91204A - 200 - Acquisition memory upgrade 100 MPts to 200 MPts
- DSA91204A - 500 - Acquisition memory upgrade 200 MPts to 500 MPts
- DSA91204A - 01G - Acquisition memory upgrade 500 MPts to 1 GPts
| Model | DSA91204A |
|---|

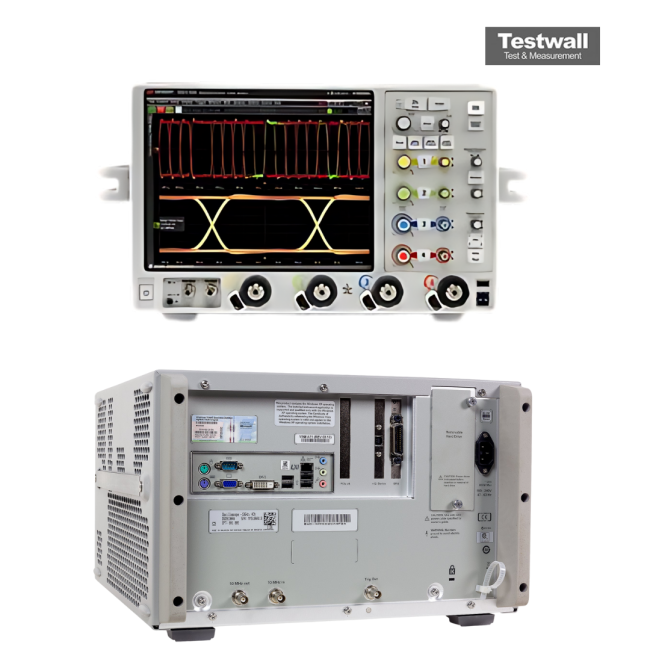

The Keysight (Agilent) DSA91204A is a 12 GHz Infiniium-series oscilloscope with 4 analog channels and 40 GSa/s sampling, engineered for high-speed signal capture and compliance testing.
It features up to 1 Gpt deep memory and a 12.1'' touchscreen interface with robust measurement and analysis tools.
Testwall can supply the used Keysight (Agilent) DSA91204A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSA91204A.
