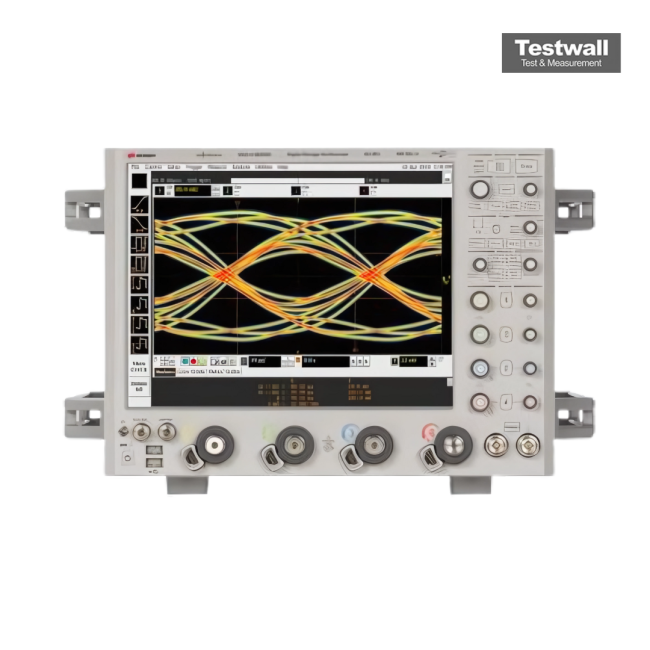

Keysight (Agilent) DSAX96204Q
2 Ch 63 GHz/ 4 Ch 33GHz Digital Signal Analyzer
20 GHz (upgradeable to 63 GHz) Bandwidth
160 GSa/s Sample Rate
4 channels Number of Channels
8-bit (up to 10-bit with high resolution mode) Vertical Resolution
Up to 2 Gpoints (standard 100 Mpoints per channel) Memory Depth
| Attribute | Value |
|---|---|
| Bandwidth | 20 GHz (upgradeable to 63 GHz) |
| Sample Rate | 160 GSa/s |
| Number of Channels | 4 channels |
| Vertical Resolution | 8-bit (up to 10-bit with high resolution mode) |
| Memory Depth | Up to 2 Gpoints (standard 100 Mpoints per channel) |
| Display | 15.4-inch color LCD touchscreen |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Input Impedance | 50 Ω |
| Operating System | Windows 10 (64-bit) |
| Connectivity | USB, LAN (LXI), PCIe, GPIB (optional) |
| Model | DSAX96204Q |
|---|
The Keysight (Agilent) DSAX96204Q delivers 63 GHz bandwidth on two channels or 33 GHz on four, with ultra-fast 160 GSa/s (2‑ch) or 80 GSa/s (4‑ch) sampling and memory up to 2 Gpts/channel.
Best-in-class noise/jitter floor, PrecisionProbe correction, and compliance/MATLAB support make it ideal for advanced testing needs.
Testwall can supply the used Keysight (Agilent) DSAX96204Q, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSAX96204Q.
