Keysight (Agilent)

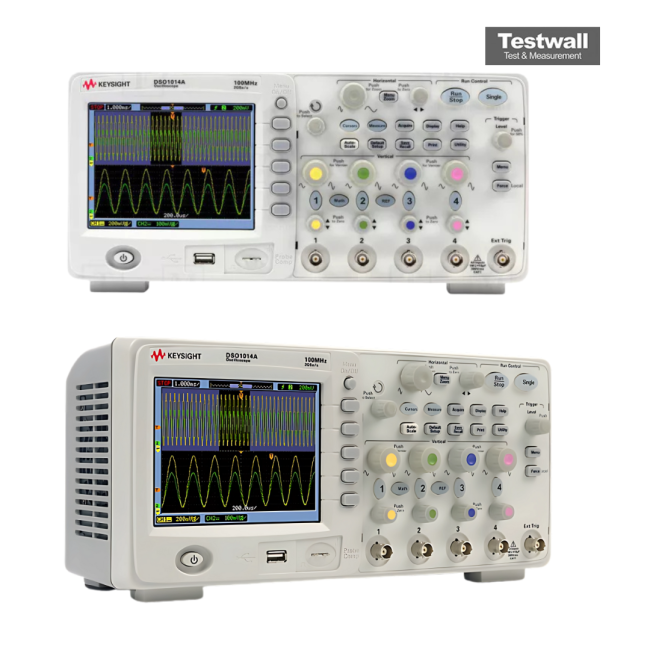

Keysight (Agilent) DSO1014A
100 MHz, 4 Analog Channel Oscilloscope
100 MHz Bandwidth
4 Number of Channels
2 GSa/s Sample Rate
32 Kpts Memory Depth
5.7-inch color LCD (320 x 240 pixels) Display
| Attribute | Value |
|---|---|
| Bandwidth | 100 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 32 Kpts |
| Display | 5.7-inch color LCD (320 x 240 pixels) |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity Range | 2 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ ± 2% in parallel with 15 pF ± 3 pF |
| Interface | USB Host, USB Device (USBTMC) |
Keysight (Agilent) DSO1014A Options:
- DSO1014A - N2738A - Soft carrying case for 1000A/B Series
- DSO1014A - N2739A - Rackmount kit for 1000A Series (A models only)
- DSO1014A - N2862B - 150 MHz 10:1 passive probe
- DSO1014A - N2863B - 300 MHz 10:1 passive probe
- DSO1014A - 10070D - 20 MHz 1:1 passive probe
- DSO1014A - 10076B - 250 MHz, 100:1, 4 kV passive probe
- DSO1014A - N2771B - 50 MHz, 1000:1 30 kV passive probe
- DSO1014A - N2791A - 25 MHz, 700V differential probe
- DSO1014A - N2891A - 70 MHz, 7 kV differential probe
- DSO1014A - 1146A - 100 kHz, 100A AC/DC current probe (requires 9V battery)
| Model | DSO1014A |
|---|
The Keysight (Agilent) DSO1014A offers 4-channel signal capture at 100 MHz with real-time sampling up to 2 GSa/s, enabling precise circuit diagnostics and detailed waveform analysis.
Its multiple triggering modes, deep memory, and integrated USB connectivity make it ideal for complex signal inspection and versatile bench-top or field use.
Testwall can supply the used Keysight (Agilent) DSO1014A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO1014A.
