Keysight (Agilent)

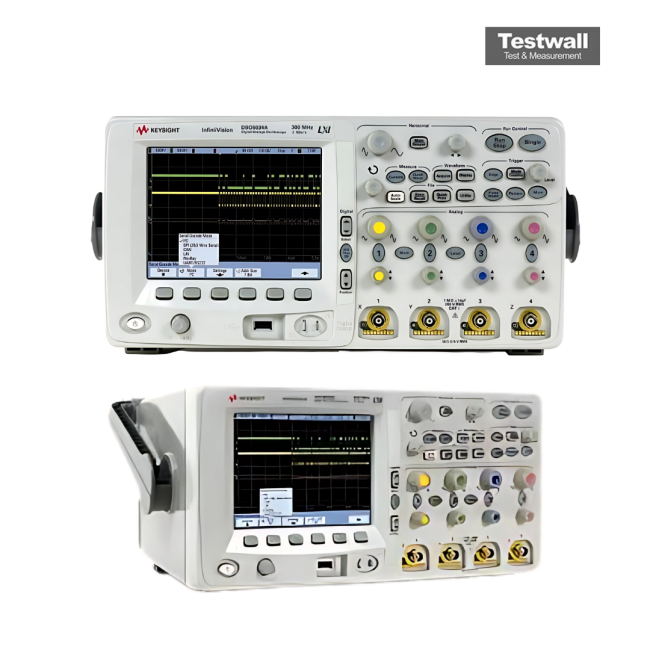

Keysight (Agilent) DSO6034A
4 Channel 2GSa/s 300MHz Digital Oscilloscope
300 MHz Bandwidth
4 Number of Channels
2 GSa/s Sample Rate
2 Mpts (standard), 4 Mpts (optional) Memory Depth
8.5-inch QVGA color LCD display Display
| Attribute | Value |
|---|---|
| Bandwidth | 300 MHz |
| Number of Channels | 4 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 2 Mpts (standard), 4 Mpts (optional) |
| Display | 8.5-inch QVGA color LCD display |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 5 ns/div to 50 s/div |
| Trigger Types | Edge, Glitch, Pattern, CAN, LIN, I2C, SPI, USB |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Model | DSO6034A |
|---|
The Keysight (Agilent) DSO6034A Oscilloscope features 300 MHz bandwidth, 4 analog channels, and a 2 GSa/s sample rate. It offers 8 Mpts deep memory and a high-definition display with 256 intensity levels for precise waveform analysis.
This oscilloscope enables fast digital debugging with 100,000 waveforms/sec update rate and supports real-time serial decoding for I2C, SPI, CAN, LIN, RS232/UART, and I2S protocols.
Testwall can supply the used Keysight (Agilent) DSO6034A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO6034A.
