Keysight (Agilent) DSO6054A
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 32 Mpts (optional) |
| Vertical Resolution | 8-bit |
| Rise Time | 700 ps |
| Timebase Range | 2 ns/div to 50 s/div |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Display | 8.5-inch WVGA color display (800 x 480 pixels) |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 3 pF, or 50 Ω ± 1.5% |
Keysight Technologies DSO6054A Options:
- DSO6054A - Option 2MH - 2 Mpts memory for MSO605xA/610xA models
- DSO6054A - Option 8MH - 8 Mpts memory for MSO605xA/610xA models
- DSO6054A - N2912A - 2 Mpts memory for MSO605xA/610xA models (after purchase)
- DSO6054A - N2913A - 8 Mpts memory for MSO605xA/610xA models (after purchase)
- DSO6054A - N2915A - MSO upgrade kit for DSO605xA/610xA models
- DSO6054A - R-51B-001-3C - 1-year return-to-Agilent warranty, extended to 3-years
- DSO6054A - R-51B-001-5C - 1-year return-to-Agilent warranty, extended to 5-years
- DSO6054A - A6J - ANSI Z540-compliant calibration
- DSO6054A - ABA - Printed user's guide in English
- DSO6054A - ABJ - Printed user's guide in Japanese
- DSO6054A - AB2 - Printed user's guide in simplified Chinese
| Model | DSO6054A |
|---|

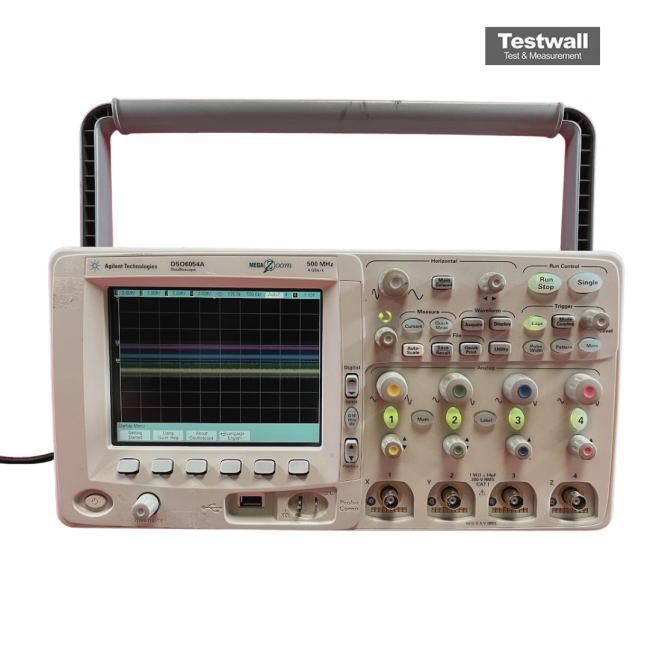

The Keysight (Agilent) DSO6054A Oscilloscope features a 500 MHz bandwidth, 4 analog channels, and a 4 GSa/s sample rate, ensuring high-performance signal analysis. It comes with 8 Mpts deep memory and a high-definition color display with 256 intensity levels for detailed waveform visualization.
Ideal for analog, digital, and serial design debugging, it offers a 100,000 waveforms/sec update rate, serial triggering and decoding, and dedicated tools for FPGA diagnostics.
Testwall can supply the used Keysight (Agilent) DSO6054A Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO6054A Oscilloscope.
