Keysight (Agilent) DSO7104A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 8 Mpts (standard), up to 16 Mpts with option |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity Range | 1 mV/div to 5 V/div |
| Timebase Range | 1 ns/div to 50 s/div |
| Rise Time | 450 ps |
| Display | 12.1-inch XGA color LCD display |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF, or 50 Ω ± 1.5% |
| Model | DSO7104A |
|---|

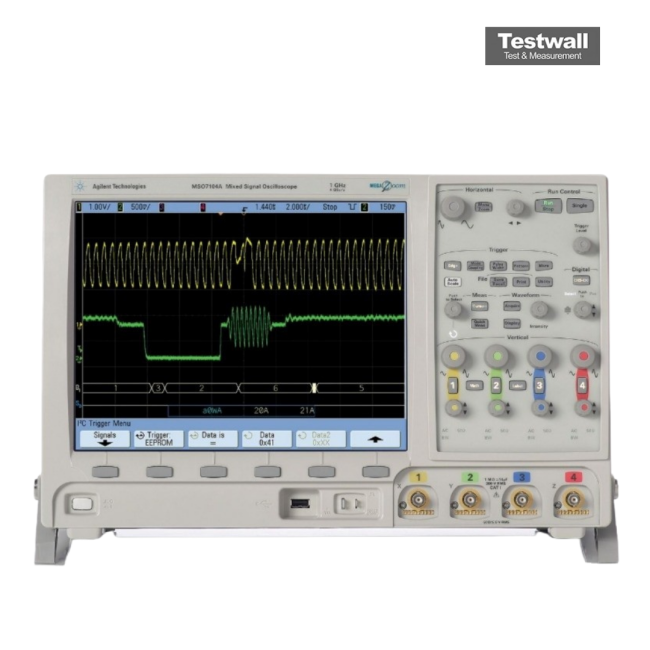

The Keysight (Agilent) DSO7104A Oscilloscope features a 1 GHz bandwidth, 4 analog channels, and 4 GSa/s sample rate. It includes an 8 Mpts memory and a 12.1” XGA display with 256 intensity levels, providing enhanced signal detail visibility. With an update rate of up to 100,000 waveforms/sec, it captures subtle and rare events effectively.
It supports serial protocol decoding (I2C, SPI, CAN, LIN, RS-232/UART, I2S), segmented memory, and PC-based offline data analysis, making it versatile for advanced debugging and analysis tasks.
Testwall can supply the used Keysight (Agilent) DSO7104A Oscilloscope, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO7104A Oscilloscope.
