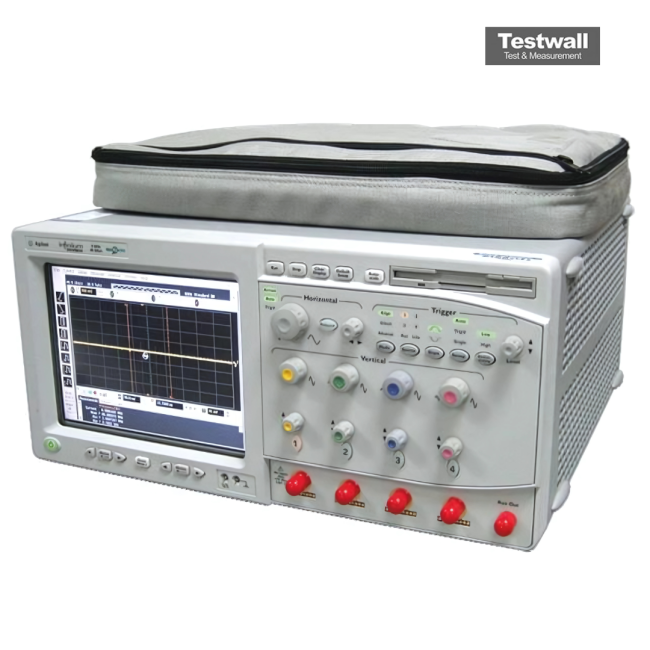

Keysight (Agilent) DSO80804A
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s |
| Memory Depth | Up to 1 Gpts (with option) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Rise Time | 46 ps |
| Input Impedance | 50 Ω |
| Display | 15-inch XGA color display |
| Operating System | Windows XP |
| Connectivity | LAN, USB, GPIB |
Keysight Technologies DSO80804A Options:
- DSO80804A - 001 - 2-M (2 channels), 1-M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO80804A - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO80804A - 003 - High-speed serial data analysis/mask testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO80804A - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO80804A - 005 - Noise reduction and bandwidth control option (installed at the factory)
- DSO80804A - 006 - My Infiniium integration package (installed at the factory)
- DSO80804A - 007 - Low-speed serial data analysis for I2C/SPI (installed at the factory)
- DSO80804A - 008 - Low-speed serial data analysis for CAN (installed at the factory)
- DSO80804A - 009 - InfiniiScan event identification software (installed at the factory)
- DSO80804A - 010 - Infiniium user defined function application software (installed at the factory)
- DSO80804A - 017 - ≥ 40 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO80804A - 1CM - Rack-mount kit (E2609B)
- DSO80804A - A6J - ANSI Z540-compliant calibration
| Model | DSO80804A |
|---|
The Keysight (Agilent) DSO80804A oscilloscope offers a bandwidth range from 2 GHz to 13 GHz with 4 analog channels and a high-speed 40 GSa/s sample rate. It features the Infiniium 80000B Series and InfiniiMax II probing system, ensuring signal integrity with less than 419 μV noise floor and under 500 fs jitter.
This unit supports bandwidth upgrades and precision testing, ideal for high-speed digital and RF applications. It excels in capturing and analyzing high-frequency signals with accuracy.
Testwall can supply the used Keysight (Agilent) DSO80804A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO80804A.
