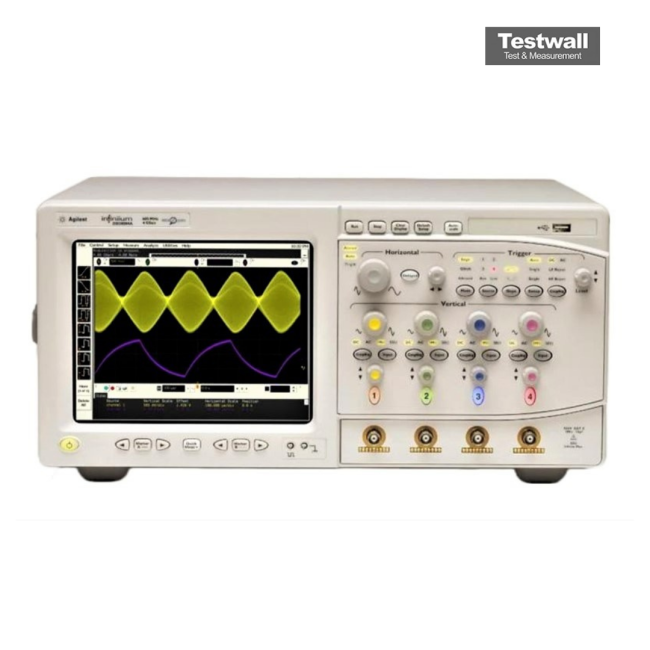

Keysight (Agilent) DSO81004A
| Attribute | Value |
|---|---|
| Bandwidth | 10 GHz |
| Number of Channels | 4 |
| Sample Rate | 40 GSa/s (single channel), 20 GSa/s (all channels) |
| Memory Depth | Up to 2 Gpts (with option) |
| Vertical Resolution | 8-bit ADC (up to 12-bit with high resolution mode) |
| Rise Time | 43.75 ps |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 12.1-inch XGA color display |
| Operating System | Windows XP Professional |
| Connectivity | LAN, USB, GPIB |
Keysight Technologies DSO81004A Options:
- DSO81004A - 001 - 2-M (2 channels), 1-M (4 channels) memory upgrade; 64 M (2 channels at 4 GSa/s) or 32 M (4 channels ≤ 2 GSa/s)
- DSO81004A - 002 - EZJIT jitter analysis software (installed at the factory)
- DSO81004A - 003 - High-speed serial data analysis/mask testing with clock recovery and 8b/10b decoding (installed at the factory)
- DSO81004A - 004 - EZJIT Plus jitter analysis software (installed at the factory)
- DSO81004A - 005 - Noise reduction and bandwidth control option (installed at the factory)
- DSO81004A - 006 - My Infiniium integration package (installed at the factory)
- DSO81004A - 007 - Low-speed serial data analysis for I2C/SPI (installed at the factory)
- DSO81004A - 008 - Low-speed serial data analysis for CAN (installed at the factory)
- DSO81004A - 009 - InfiniiScan event identification software (installed at the factory)
- DSO81004A - 010 - Infiniium user defined function application software (installed at the factory)
- DSO81004A - 017 - ≥ 40 Gb removable hard disk drive; replaces internal hard disk with a removable hard disk
- DSO81004A - 1CM - Rack-mount kit (E2609B)
- DSO81004A - A6J - ANSI Z540-compliant calibration
| Model | DSO81004A |
|---|
The Keysight (Agilent) DSO81004A is a 10 GHz bandwidth real-time oscilloscope offering up to 40 GSa/s sample rate, designed for high-speed serial communication testing. It features industry-leading trigger jitter below 500 fs rms, ultra-low vertical noise floor, and deep memory up to 64 Mpts. Equipped with InfiniiMax II 1168A probing system, it delivers superior signal fidelity and analysis.
Ideal for PCI-Express, SATA, Fibre Channel, and other protocols up to 8.5 Gb/s, it supports fast edge detection with rise times under 50 ps and includes versatile InfiniiMax probing accessories.
Testwall can supply the used Keysight (Agilent) DSO81004A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSO81004A.
