Keysight (Agilent)

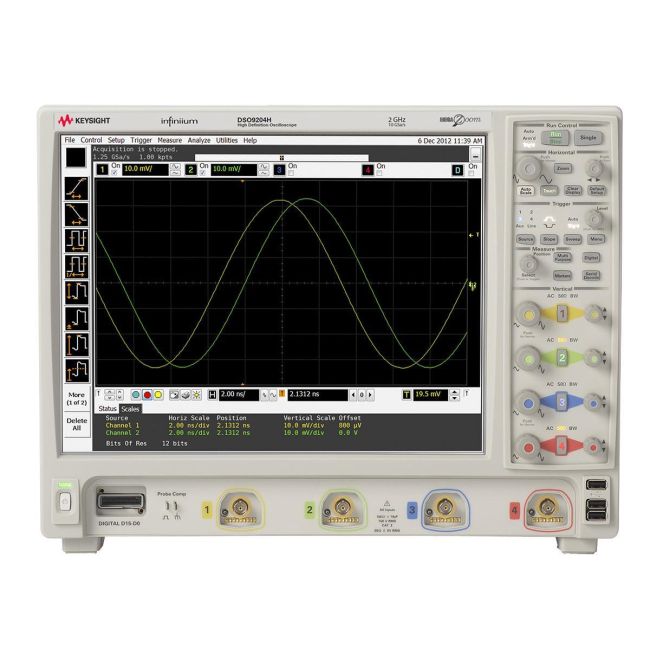

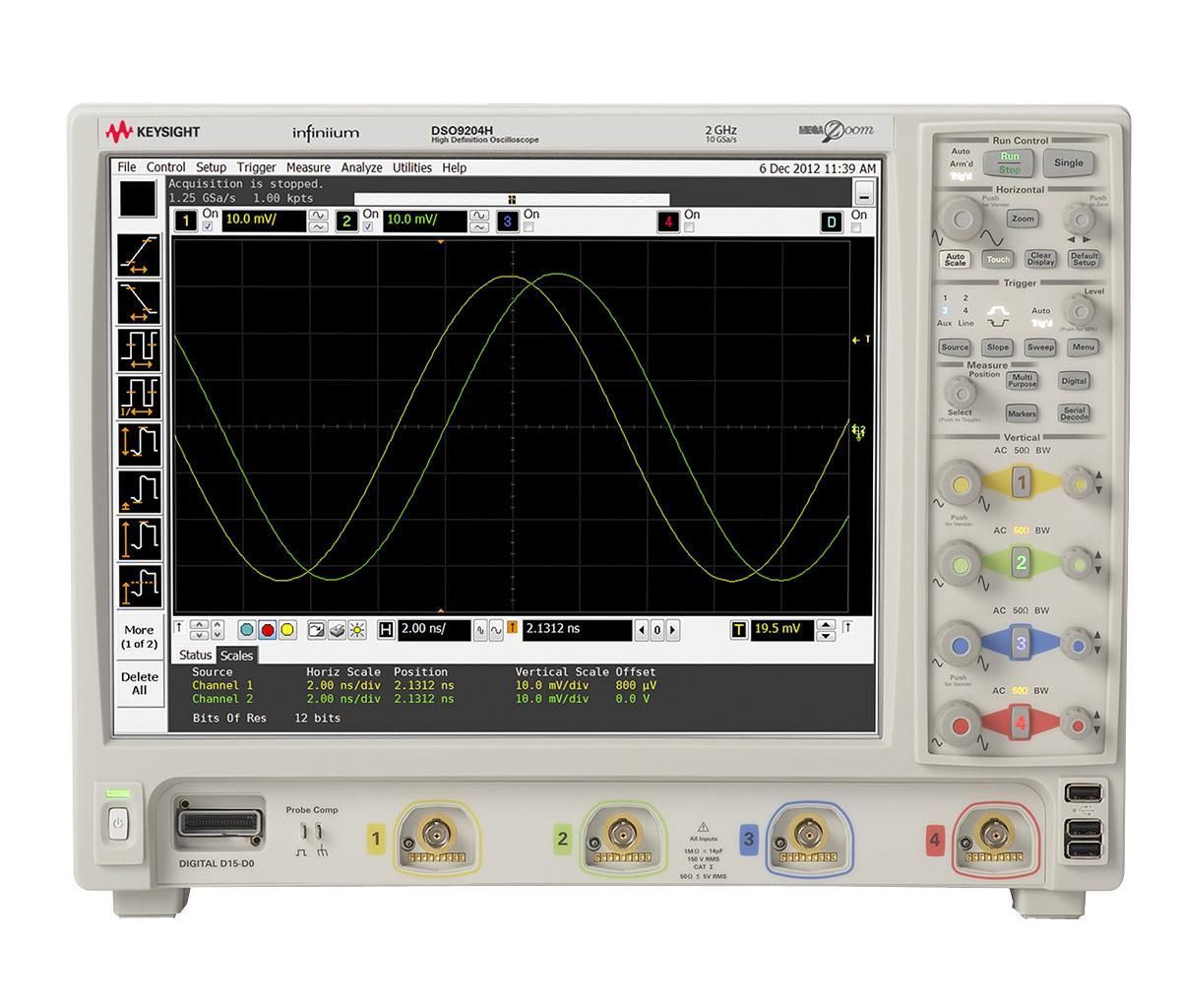

Keysight (Agilent) DSO9204H
4 Ch 2 GHz Infiniium High Definition Oscilloscope
2 GHz Bandwidth
4 Number of Channels
20 GSa/s Sample Rate
Up to 1 Gpts (with memory option) Memory Depth
8-bit (up to 12-bit with high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 2 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GSa/s |
| Memory Depth | Up to 1 Gpts (with memory option) |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Display | 15-inch XGA color touch screen display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Time Base Range | 200 ps/div to 20 s/div |
| Input Impedance | 50 Ω or 1 MΩ selectable |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Keysight Technologies DSO9204H Options:
- DSO9204H - 801 - 80 GBytes or greater hard disk drive. Replaces internal hard disk drive with a removable hard disk drive.
- DSO9204H - 803 - Additional 2 GByte CPU Memory (4 GByte total)
- DSO9204H - 805 - GPIB card
- DSO9204H - 821 - Precision BNC to SMA adaptors (qty 2)
- DSO9204H - 1CM - Rackmount Kit
- DSO9204H - A6J - ANSI Z540 compliant calibration
- DSO9204H - 1A7 - ISO17025 compliant calibration
- DSO9204H - 002 - EZJIT Jitter Analysis Software (standard on DSA series)
- DSO9204H - 004 - EZJIT Plus Jitter Analysis Software (standard on DSA series)
- DSO9204H - 006 - My Infiniium Integration Package
- DSO9204H - 005 - Noise Reduction and Bandwidth Control (standard on DSA series and DSO91304A)
- DSO9204H - 011 - Infiniium Application Remote Program Interface Software
- DSO9204H - 010 - Infiniium User Defined Function Software
- DSO9204H - 009 - InfiniiScan Event Identification Software
- DSO9204H - 007 - I2C and SPI Low-speed Data Analysis
- DSO9204H - 008 - CAN Serial Data Analysis Software
- DSO9204H - 029 - USB 2.0 Validation and Compliance Software
- DSO9204H - 003 - High Speed Serial Data Analysis Software (standard on DSA series)
- DSO9204H - 024 - Fully Buffered DIMM Validation and Compliance Software
- DSO9204H - 022 - PCI Express Electrical Performance Validation and Compliance Software
- DSO9204H - 021 - Ethernet Electrical Performance Validation and Compliance Software
- DSO9204H - 031 - DDR1 Validation and Compliance Software
- DSO9204H - 032 - DDR2 Validation and Compliance Software
- DSO9204H - 033 - DDR3 Validation and Compliance Software
- DSO9204H - 030 - XAUI Electrical Validation and Compliance Software with 10GBASE-CX4, CPRI, OBSAI, and Serial RapidIO Support
- DSO9204H - 028 - DisplayPort Validation and Compliance Software
- DSO9204H - 027 - Serial Attached SCSI Electrical Performance Validation and Compliance Software
- DSO9204H - 026 - Serial ATA Electrical Performance Validation and Compliance Software
- DSO9204H - 025 - Fibre Channel Validation and Compliance Software
- DSO9204H - 023 - HDMI Electrical Performance Validation and Compliance Software
- DSO9204H - 20M - Acquisition memory upgrade: 10 MPts to 20 MPts (standard on DSA)
- DSO9204H - 50M - Acquisition memory upgrade: 20 MPts to 50 MPts
- DSO9204H - 100 - Acquisition memory upgrade: 50 MPts to 100 MPts
- DSO9204H - 200 - Acquisition memory upgrade: 100 MPts to 200 MPts
- DSO9204H - 500 - Acquisition memory upgrade: 200 MPts to 500 MPts
- DSO9204H - 01G - Acquisition memory upgrade: 500 MPts to 1 GPts
| Model | DSO9204H |
|---|
