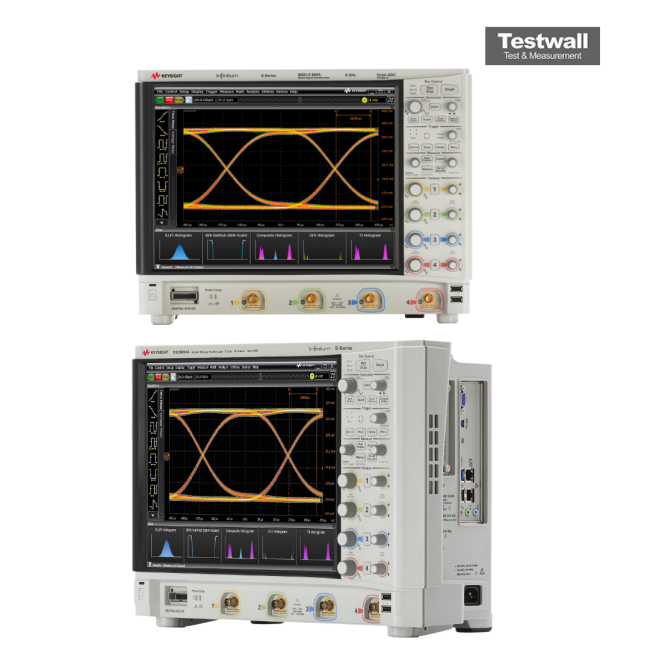

Keysight (Agilent) DSOS804A 4 Ch 8 GHz Oscilloscope - Infiniium S Series
4 Ch 8 GHz Oscilloscope - Infiniium S Series
8 GHz Bandwidth
4 Number of Channels
20 GSa/s (single channel), 10 GSa/s (all channels) Sample Rate
800 Mpts (standard), up to 2 Gpts (optional) Memory Depth
8-bit (up to 10-bit with high resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 8 GHz |
| Number of Channels | 4 |
| Sample Rate | 20 GSa/s (single channel), 10 GSa/s (all channels) |
| Memory Depth | 800 Mpts (standard), up to 2 Gpts (optional) |
| Vertical Resolution | 8-bit (up to 10-bit with high resolution mode) |
| Rise Time | 56 ps (typical) |
| Input Impedance | 50 Ω or 1 MΩ |
| Display | 15.4-inch WXGA (1280 x 800) capacitive touch screen |
| Operating System | Windows 10 (64-bit) |
| Connectivity | USB, LAN (LXI), GPIB (optional), DisplayPort |
Keysight Technologies DSOS804A 4 Ch 8 GHz Oscilloscope - Infiniium S Series Options:
- DSOS804A - DSOS000-100 - Acquisition memory depth upgrade: Increase to 100 Mpts/200 Mpts (4-ch/2-ch)
- DSOS804A - DSOS000-200 - Acquisition memory depth upgrade: Increase to 200 Mpts/400 Mpts (4-ch/2-ch)
- DSOS804A - DSOS000-400 - Acquisition memory depth upgrade: Increase to 400 Mpts/800 Mpts (4-ch/2-ch)
- DSOS804A - DSOS8GBW - Bandwidth upgrade to 8 GHz
- DSOS804A - DSOS6GBW - Bandwidth upgrade to 6 GHz
- DSOS804A - DSOS4GBW - Bandwidth upgrade to 4 GHz
- DSOS804A - DSO2G5BW - Bandwidth upgrade to 2.5 GHz
- DSOS804A - DSOS2GBW - Bandwidth upgrade to 2 GHz
- DSOS804A - DSOS1GBW - Bandwidth upgrade to 1 GHz
- DSOS804A - DSOS000-A6J - ANSI Z540 compliant calibration
| Model | DSOS804A |
|---|
The Keysight (Agilent) DSOS804A S-Series oscilloscope features 8 GHz bandwidth, 4 analog channels, 10-bit ADC, and 20 GSa/s sampling rate. Includes 15” touchscreen, 100 Mpts/channel memory, and ENOB of 8.1 at full bandwidth.
Ideal for high-speed signal analysis and protocol testing.
Testwall can supply the used Keysight (Agilent) DSOS804A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOS804A.
