Keysight (Agilent) DSOV164A
| Attribute | Value |
|---|---|
| Bandwidth | 16 GHz |
| Number of Channels | 4 |
| Sample Rate | 80 GSa/s |
| Memory Depth | 2 Gpts (standard), up to 64 Gpts (optional) |
| Vertical Resolution | 8 bits (up to 10 bits with enhanced resolution) |
| Rise Time | 21.9 ps |
| Input Impedance | 50 Ω |
| Voltage Range (Full Scale) | 10 mV/div to 1 V/div |
| Display | 15.4-inch color LCD touchscreen |
| Operating System | Windows 10 |
Keysight (Agilent) DSOV164A Options:
- DSOV164A - DSOV000-100 - 100 Mpts/channel memory upgrade
- DSOV164A - DSOV000-200 - 200 Mpts/channel memory upgrade
- DSOV164A - DSOV000-500 - 500 Mpts/channel memory upgrade
- DSOV164A - DSOV000-01G - 1 Gpts/channel memory upgrade
- DSOV164A - DSOV000-02G - 2 Gpts/channel memory upgrade
- DSOV164A - DSOV000-810 - Hardware serial trigger
- DSOV164A - DSOV000-801 - 1 TB removable Solid State Drive (SSD) with Windows 7
- DSOV164A - DSOV000-805 - GPIB card-interface
- DSOV164A - DSOV000-808 - Performance verification and deskew fixture
- DSOV164A - DSOV000-A6J - ANSI Z540 compliant calibration
- DSOV164A - DSOV000-AMG - Calibration + uncertainties + guardbanding (accredited)
- DSOV164A - DSOV13GBW - Bandwidth upgrade to 13 GHz
- DSOV164A - DSOV16GBW - Bandwidth upgrade to 16 GHz
- DSOV164A - DSOV20GBWU - Bandwidth upgrade to 20 GHz
- DSOV164A - DSOV25GBWU - Bandwidth upgrade to 25 GHz
- DSOV164A - DSOV33GBWU - Bandwidth upgrade to 33 GHz
| Model | DSOV164A |
|---|

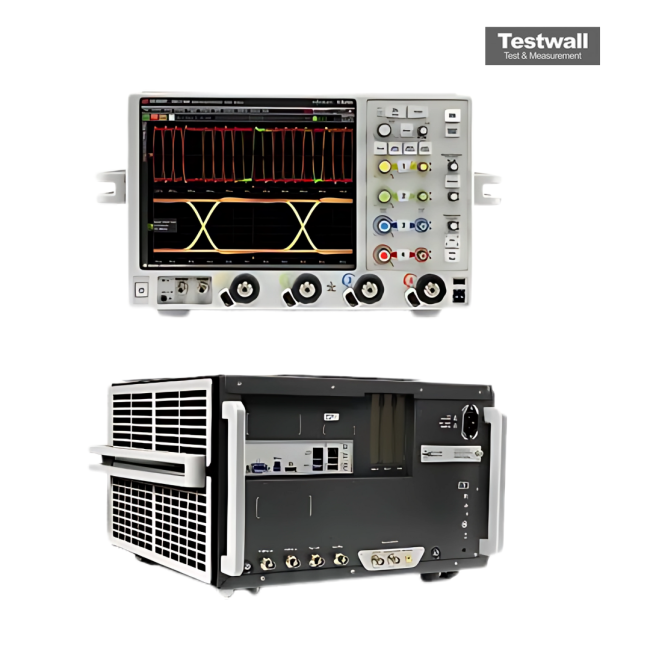

The Keysight (Agilent) DSOV164A Infiniium V-Series oscilloscope delivers exceptional signal fidelity with 16 GHz analog bandwidth, 4 analog channels, and up to 80 GSa/s sampling rate. With 2 Gpts of acquisition memory and ultra-low noise levels (1.32 mVrms at 50 mV/div), it provides unmatched accuracy for high-speed design testing.
Featuring jitter measurement floor of 100 fs, ENOB values above 5.5, and SFDR over 50 dBC, this oscilloscope offers a broad suite of jitter, trigger, protocol, and analysis tools including PrecisionProbe for enhanced signal clarity and precision.
Testwall can supply the used Keysight (Agilent) DSOV164A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOV164A.
