Keysight (Agilent) DSOX2022A
| Attribute | Value |
|---|---|
| Bandwidth | 200 MHz |
| Number of Channels | 2 |
| Sample Rate | 2 GSa/s |
| Memory Depth | 1 Mpts |
| Display | 7-inch WVGA (800 x 480) color display |
| Vertical Resolution | 8 bits |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Timebase Range | 5 ns/div to 50 s/div |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 2 pF |
| Waveform Update Rate | Up to 50,000 waveforms per second |
Keysight (Agilent) DSOX2022A Options:
- DSOX2022A - DSOX2MEMUP - Upgrade to 1 Mpts per channel (1 Megapoint memory upgrade)
- DSOX2022A - DSOX2EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX2022A - DSOX2COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- DSOX2022A - DSOX2AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DSOX2022A - DSOX2WAVEGEN - WaveGen (built-in function generator)
- DSOX2022A - DSOXDVM - Integrated digital voltmeter
- DSOX2022A - DSOXEDK - Educator's kit
- DSOX2022A - DSOX2MASK - Mask testing
- DSOX2022A - DSOX2SGM - Segmented memory
- DSOX2022A - DSOX2MSO - Upgrade to 8 digital timing channels
- DSOX2022A - DSOX2BW22 - Bandwidth upgrade: 100 MHz to 200 MHz, 2 channel, License only
- DSOX2022A - DSOXLAN - LAN/VGA connection module
- DSOX2022A - DSOXGPIB - GPIB connection module
| Model | DSOX2022A |
|---|

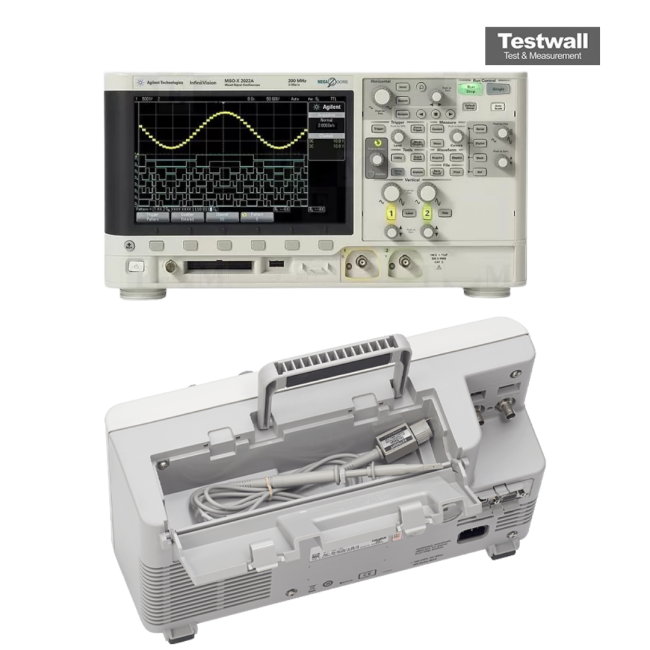

The Keysight (Agilent) DSOX2022A is a 200 MHz oscilloscope with 2 analog channels and an 8.5-inch WVGA display for easy signal visualization. It offers up to 1 Mpts memory depth and a 200,000 wfms/s update rate, enhancing signal detail and data capture. This model supports full upgradability including digital channels, a function generator, voltmeter, serial analysis, segmented memory, and mask testing capabilities.
Ideal for educational labs and versatile applications, the DSOX2022A includes a 300 MHz passive probe per channel, built-in help in multiple languages, and comprehensive interface language support for global use.
Testwall can supply the used Keysight (Agilent) DSOX2022A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX2022A.
