Keysight (Agilent)

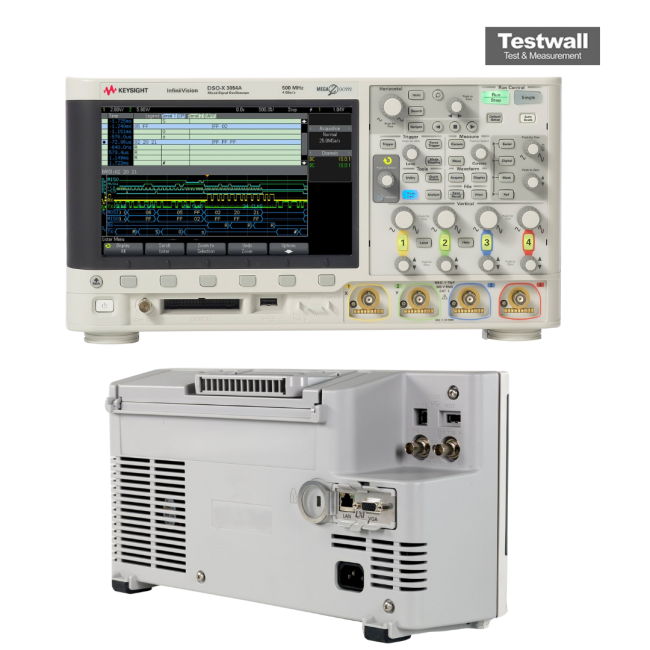

Keysight (Agilent) DSOX3054A
4 Ch 500 MHz Oscilloscope
500 MHz Bandwidth
4 Number of Channels
4 GSa/s Sample Rate
4 Mpts standard (up to 8 Mpts with option) Memory Depth
8.5-inch WVGA (800 x 480) capacitive touch screen Display
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts standard (up to 8 Mpts with option) |
| Display | 8.5-inch WVGA (800 x 480) capacitive touch screen |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Timebase Range | 2 ns/div to 50 s/div |
| Waveform Update Rate | 1,000,000 waveforms per second |
| Input Impedance | 1 MΩ ± 1% in parallel with 13 pF ± 3 pF |
Keysight Technologies DSOX3054A Options:
- DSOX3054A - DSOX3MEMUP - Memory upgrade: 4 Mpts half-channel (from 2 Mpts standard)
- DSOX3054A - DSOX3MSO - MSO upgrade: add 16 digital timing channels
- DSOX3054A - DSOX3WAVEGEN - WaveGen built-in 20 MHz Function/Arbitrary Waveform Generator
- DSOX3054A - DSOXEDK - Educator's Oscilloscope Training Kit
- DSOX3054A - DSOX3MASK - Mask limit testing
- DSOX3054A - DSOX3SGM - Segmented memory
- DSOX3054A - DSOX3ADVMATH - Advanced waveform math
- DSOX3054A - DSOX3VID - Enhanced HDTV video triggering and analysis
- DSOX3054A - DSOX3EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSOX3054A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- DSOX3054A - DSOX3AUDIO - Audio serial triggering and analysis (I2S)
- DSOX3054A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DSOX3054A - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3054A - DSOX3AERO - Aerospace and Defense serial triggering and analysis (MIL-STD 1553, ARINC 429)
- DSOX3054A - DSOX3PWR - Power measurement and analysis
- DSOX3054A - DSOX3BW52 - Bandwidth upgrade: 350 MHz to 500 MHz, 2 ch, License only
- DSOX3054A - DSOX3BW54 - Bandwidth upgrade: 350 MHz to 500 MHz, 4 ch, License only
- DSOX3054A - DSOXLAN - LAN/VGA connection module
- DSOX3054A - DSOXGPIB - GPIB connection module
| Model | DSOX3054A |
|---|
The Keysight (Agilent) DSOX3054A oscilloscope offers 500 MHz bandwidth, 4 analog channels, 4 GSa/s sampling, and memory depth of 2/4 Mpts. Includes 5-in-1 instruments and segmented memory options.
Optimized for waveform fidelity and multi-protocol signal analysis.
Testwall can supply the used Keysight (Agilent) DSOX3054A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX3054A.
