Keysight (Agilent) DSOX3102A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 2 Analog Channels |
| Sample Rate | 4 GSa/s |
| Memory Depth | 4 Mpts (standard), upgradeable to 8 Mpts |
| Display | 8.5-inch WVGA (800 x 480) color display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Vertical Resolution | 8-bit (up to 12-bit with hardware averaging) |
| Time Base Range | 2 ns/div to 50 s/div |
| Connectivity | USB, LAN (LXI), and optional GPIB |
| Triggering | Edge, Pulse Width, Pattern, OR, Rise/Fall Time, Runt, Setup & Hold, Video, USB, and more |
Keysight (Agilent) DSOX3102A Options:
- DSOX3102A - DSOX3MEMUP - Memory upgrade (standard 2 Mpts to optional 4 Mpts)
- DSOX3102A - DSOX3SGM - Segmented memory
- DSOX3102A - DSOX3MSO - MSO upgrade: Add 16 digital timing channels (for 500 MHz and below models)
- DSOX3102A - DSOX3WAVEGEN - WaveGen 20 MHz arbitrary/function generator
- DSOX3102A - DSOX3MASK - Mask limit testing
- DSOX3102A - DSOX3ADVMATH - Advanced waveform math
- DSOX3102A - DSOX3VID - Enhanced video/TV triggering and analysis
- DSOX3102A - DSOX3EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX3102A - DSOX3COMP - Computer serial triggering and analysis (RS232/422/485/UART)
- DSOX3102A - DSOX3AUTO - Automotive serial triggering and analysis (CAN, LIN)
- DSOX3102A - DSOX3FLEX - FlexRay serial triggering and analysis
- DSOX3102A - DSOX3AUDIO - Audio serial triggering and analysis (I²S)
- DSOX3102A - DSOX3AERO - Aerospace serial triggering and analysis (MIL-STD 1553, ARINC 429)
- DSOX3102A - DSOX3PWR - Power measurements and analysis
- DSOX3102A - DSOXLAN - LAN/VGA connection module
- DSOX3102A - DSOXGPIB - GPIB connection module
- DSOX3102A - DSOX3BW32 - 100 MHz to 350 MHz, 2 ch, Service center bandwidth upgrade
| Model | DSOX3102A |
|---|

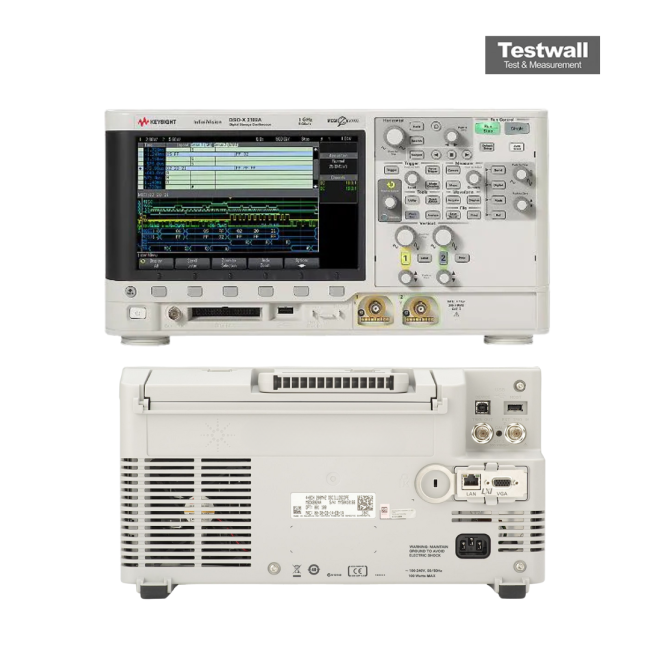

The Keysight (Agilent) DSOX3102A is a 1 GHz, 2-channel digital oscilloscope with an 8.5-inch WVGA display, offering up to 4 Mpts memory and an update rate of 1,000,000 wfms/s for detailed signal analysis. Its modular architecture supports upgrades such as serial analysis, waveform generation, and mask testing.
This unit features extensive language support and includes a N2890A 500 MHz passive probe per channel, secure erase, and a certificate of calibration. Expandable options enhance measurement and debugging capabilities.
Testwall can supply the used Keysight (Agilent) DSOX3102A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX3102A.
