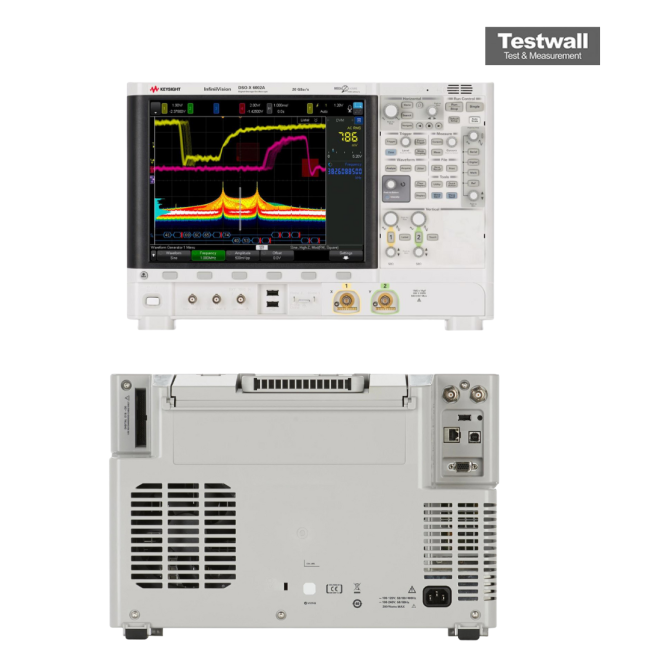

Keysight (Agilent) DSOX6002A
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 2 Analog Channels |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts (standard), up to 800 Mpts (optional) |
| Vertical Resolution | 8-bit (up to 12-bit with high resolution mode) |
| Display | 12.1-inch WXGA (1280 x 800) capacitive touch display |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Trigger Types | Edge, Glitch, Pattern, Pulse Width, Runt, Setup & Hold, Transition, Window, and more |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
| Segmented Memory | Up to 1,000 segments supported |
Keysight (Agilent) DSOX6002A Options:
- DSOX6002A - DSOX6B10T252BW - 1.0 to 2.5 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B10T402BW - 1.0 to 4.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B10T602BW - 1.0 to 6.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B25T402BW - 2.5 to 4.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B25T602BW - 2.5 to 6.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6B40T602BW - 4.0 to 6.0 GHz bandwidth upgrade, 2 ch, fixed perpetual license
- DSOX6002A - DSOX6MSO - InfiniiVision 6000 X-Series oscilloscope MSO upgrade (16 digital channels)
- DSOX6002A - DSOX6APPBNDL - Software application bundle (includes all software applications)
- DSOX6002A - DSOX6EMBD - Embedded serial triggering and analysis (I2C, SPI)
- DSOX6002A - DSOX6COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX6002A - DSOX6USBFL - USB 2.0 Full/Low Speed serial decode and triggering
- DSOX6002A - DSOX6USBH - USB 2.0 Hi-Speed serial decode and triggering
- DSOX6002A - DSOX6AUTO - Automotive serial triggering and analysis (CAN, CAN-dbc, CAN-FD, LIN)
- DSOX6002A - DSOX6FLEX - FlexRay serial triggering and analysis
- DSOX6002A - DSOX6AUDIO - Audio serial triggering and analysis (I2S)
- DSOX6002A - DSOX6AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX6002A - DSOX6SENSOR - SENT (Single Edge Nibble Transmission) triggering and analysis
- DSOX6002A - DSOX6JITTER - Jitter and real time eye diagram analysis
- DSOX6002A - DSOX6WAVEGEN2 - Dual channel WaveGen 20 MHz AWG
- DSOX6002A - DSOXDVMCTR - Integrated digital voltmeter and 10 digit counter with totalizer
- DSOX6002A - DSOX6PWR - Power analysis application
- DSOX6002A - DSOX6MASK - Mask limit testing
- DSOX6002A - DSOX6USBSQ - USB 2.0 signal quality test
- DSOX6002A - DSOX6VID - Enhanced video/TV application package
- DSOX6002A - DSOX6FPGAX - FPGA dynamic probe option for Xilinx
- DSOX6002A - DSOXEDK - Education and training kit
- DSOX6002A - N8900A - Infiniium offline oscilloscope analysis software
- DSOX6002A - BV0000A - BenchVue software
| Model | DSOX6002A |
|---|
The Keysight (Agilent) DSOX6002A oscilloscope features 2 GHz bandwidth across 2 analog channels and a powerful 20 GSa/s real-time sampling rate, ensuring precision waveform capture. It includes a 12.1-inch multi-touch capacitive screen, advanced waveform math, logic analysis, and optional serial protocol tools for enhanced functionality.
Ideal for design engineers and validation teams, this model supports in-depth waveform inspection and compliance testing in digital systems.
Testwall can supply the used Keysight (Agilent) DSOX6002A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) DSOX6002A.
