Keysight (Agilent)

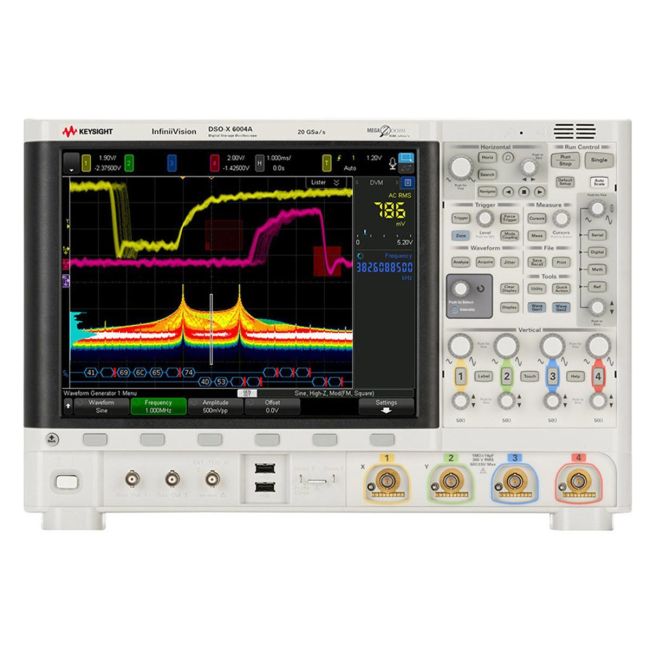

Keysight (Agilent) DSOX6004A
4 Ch 1 GHz Oscilloscope
1 GHz Bandwidth
4 Analog Channels Number of Channels
5 GSa/s Sample Rate
4 Mpts standard (up to 16 Mpts with option) Memory Depth
8-bit (up to 12-bit with high-resolution mode) Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 1 GHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 5 GSa/s |
| Memory Depth | 4 Mpts standard (up to 16 Mpts with option) |
| Vertical Resolution | 8-bit (up to 12-bit with high-resolution mode) |
| Vertical Sensitivity Range | 1 mV/div to 5 V/div |
| Timebase Range | 1 ns/div to 50 s/div |
| Display | 12.1-inch WXGA (1280 x 800) capacitive touch screen |
| Waveform Update Rate | Up to 1,000,000 waveforms per second |
| Connectivity | USB, LAN (LXI), GPIB (optional) |
Keysight Technologies DSOX6004A Options:
- DSOX6004A - DSOX6B10T254BW - 2.5 GHz bandwidth upgrade for 4 channel models
- DSOX6004A - DSOX6B10T404BW - 4 GHz bandwidth upgrade for 4 channel models
- DSOX6004A - DSOX6B10T604BW - 6 GHz bandwidth upgrade for 4 channel models
- DSOX6004A - DSOX6EMBD - Embedded serial triggering and analysis (I²C, SPI)
- DSOX6004A - DSOX6COMP - Computer serial triggering and analysis (RS232/UART)
- DSOX6004A - DSOX6USBFL - USB 2.0 full-/low-speed serial decode and triggering
- DSOX6004A - DSOX6USBH - USB 2.0 hi-speed serial decode and triggering
- DSOX6004A - DSOX6AUTO - Automotive serial triggering and analysis (CAN/LIN)
- DSOX6004A - DSOX6FLEX - FlexRay serial triggering and analysis
- DSOX6004A - DSOX6AUDIO - Audio serial triggering and analysis (I²S)
- DSOX6004A - DSOX6AERO - MIL-STD 1553 and ARINC 429 serial triggering and analysis
- DSOX6004A - DSOX6WAVEGEN2 - Dual-channel WaveGen 20-MHz AWG
- DSOX6004A - DSOX6JITTER - Jitter and real-time eye diagram analysis
- DSOX6004A - DSOXDVMCTR - Integrated digital voltmeter and 10-digit counter
- DSOX6004A - DSOX6PWR - Power analysis application
- DSOX6004A - DSOX6MASK - Mask limit testing
- DSOX6004A - DSOX6USBSQ - USB 2.0 signal quality test
- DSOX6004A - DSOX6VID - Enhanced video/TV application package
- DSOX6004A - DSOX6FPGAX - FPGA dynamic probe option for Xilinx
- DSOX6004A - DSOX6MSO - InfiniiVision 6000 X-Series oscilloscope MSO upgrade
- DSOX6004A - DSOX6B25T404BW - 2.5 GHz to 4.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- DSOX6004A - DSOX6B25T604BW - 2.5 GHz to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- DSOX6004A - DSOX6B40T604BW - 4.0 GHz to 6.0 GHz bandwidth upgrade, 4 ch, fixed perpetual license
- DSOX6004A - DSOXEDK - Education and training kit
- DSOX6004A - N8900A - Infiniium Offline oscilloscope analysis software
- DSOX6004A - 34840B - BenchVue software
| Model | DSOX6004A |
|---|
The Keysight DSOX6004A InfiniiVision 6000 X-Series oscilloscope features 1 GHz bandwidth, four analog channels sampling at 20 GSa/s, and 4 Mpts of memory. Zone triggering and 450,000 wfms/s update make it highly responsive.
Includes 7-in-1 functions like waveform generator, counter, DMM, serial decode; all in a compact 6.8 kg design.
Testwall can supply the used Keysight DSOX6004A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight DSOX6004A.
