Keysight (Agilent)
Keysight (Agilent) E1346A
VXI Module (C-Size) Form Factor
48 Channels Number of Channels
Single-Pole Single-Throw (SPST) Relay Matrix Switch Type
4 x 12 Relay Matrix Configuration
300 V DC / 250 V AC (RMS) Maximum Voltage
| Attribute | Value |
|---|---|
| Form Factor | VXI Module (C-Size) |
| Number of Channels | 48 Channels |
| Switch Type | Single-Pole Single-Throw (SPST) Relay Matrix |
| Configuration | 4 x 12 Relay Matrix |
| Maximum Voltage | 300 V DC / 250 V AC (RMS) |
| Maximum Current | 1 A per Channel |
| Maximum Power | 30 W per Channel |
| Contact Resistance | Less than 1 Ohm |
| Operating Temperature | 0°C to 55°C |
| Interface/Bus | VXIbus (MXI or Embedded Controller Compatible) |
| Model | E1346A |
|---|

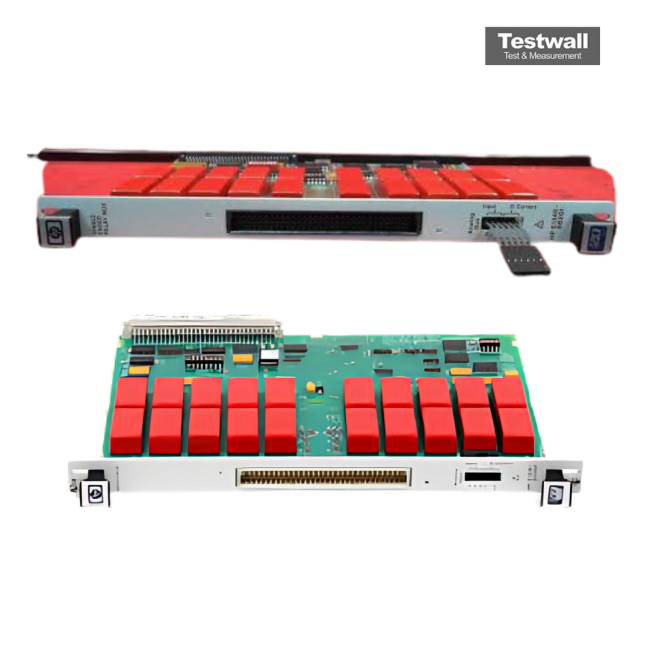

The Keysight (Agilent) E1346A Single-Ended Relay Multiplexer is a B-size, 1-slot VXI module offering 48 high signal channels plus one low and one guard channel, ideal for complex signal routing.
It includes a plug-on terminal block and an analog bus connector for seamless integration with compatible DMMs and adjacent multiplexers.
Testwall can supply the used Keysight (Agilent) E1346A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1346A.
