Keysight (Agilent) E1366A
VXI C-Size Module Form Factor
4 Channels Number of Channels
0 to ±50V Output Voltage Range
0 to ±2A per channel Output Current Range
1 mV Voltage Resolution
| Attribute | Value |
|---|---|
| Form Factor | VXI C-Size Module |
| Number of Channels | 4 Channels |
| Output Voltage Range | 0 to ±50V |
| Output Current Range | 0 to ±2A per channel |
| Voltage Resolution | 1 mV |
| Current Resolution | 1 mA |
| Interface/Bus | VXIbus (MXI or Embedded Controller) |
| Isolation | Channel-to-channel isolation supported |
| Programming Compatibility | SCPI (Standard Commands for Programmable Instruments) |
| Operating Temperature | 0°C to 55°C |
| Model | E1366A |
|---|

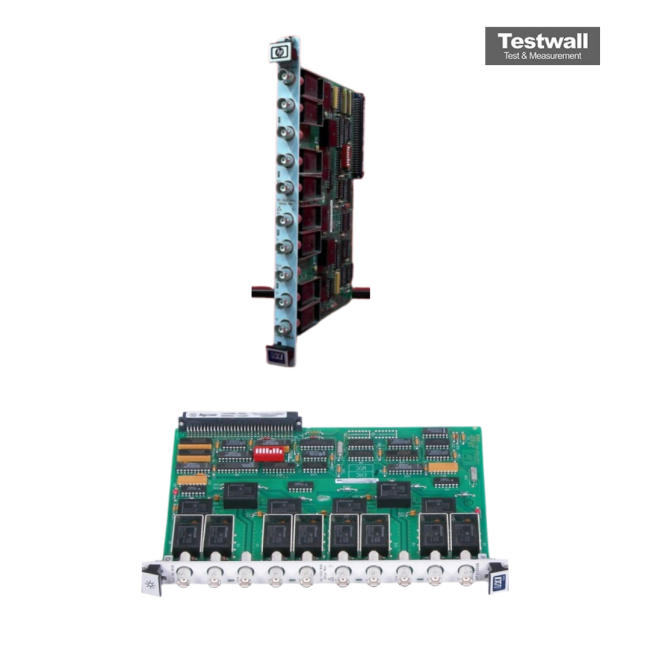

The Keysight (Agilent) E1366A 50 Ohm RF Multiplexer is a B-size, 1-slot VXI module featuring two independent 1x4 one-wire multiplexers with 50 Ohm terminations. Each channel uses non-latching armature relays and supports SCPI commands for controlled switching.
Ideal for routing test signals to RF instruments like oscilloscopes, analyzers, and more, ensuring low VSWR and high isolation with removable termination resistors.
Testwall can supply the used Keysight (Agilent) E1366A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1366A.
