Keysight (Agilent) E1411B
| Attribute | Value |
|---|---|
| Form Factor | VXI C-Size, Single Slot |
| Measurement Function | 5½-Digit Multimeter |
| Resolution | Up to 5.5 digits (22 bits) |
| DC Voltage Range | 100 mV to 300 V |
| AC Voltage Range | 100 mV to 300 V (10 Hz to 300 kHz) |
| Resistance Measurement | 100 Ω to 100 MΩ (2-wire and 4-wire) |
| DC Current Range | 100 µA to 1 A |
| Reading Rate | Up to 2,500 readings per second |
| Interface/Bus | VXIbus (IEEE 1101.2), C-Size Module |
| Operating Temperature | 0°C to 55°C |
| Model | E1411B |
|---|

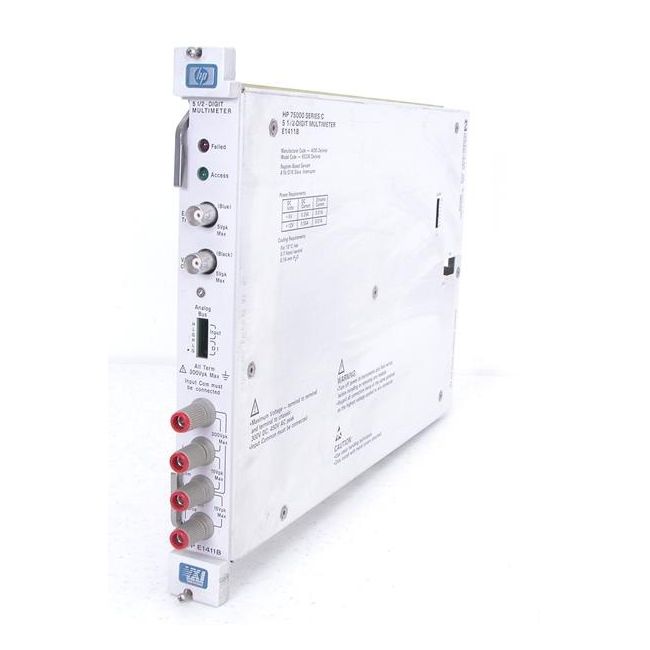

The Keysight (Agilent) E1411B is a C-size, 1-slot, register-based VXI module 5.5-digit multimeter, mirroring the E1326B in electrical design but optimized for modular applications. It features dual A/D conversion—integrating for low-noise, high-accuracy 5.5-digit readings and sampling A/D for 14-bit measurements at up to 13 kHz.
With support for SCPI commands and Agilent multiplexers, it facilitates multichannel setups for measuring Vdc/ac, 2-/4-wire resistance, thermocouples, thermistors, and RTDs with autoranging capabilities.
Testwall can supply the used Keysight (Agilent) E1411B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1411B.
