Keysight (Agilent)

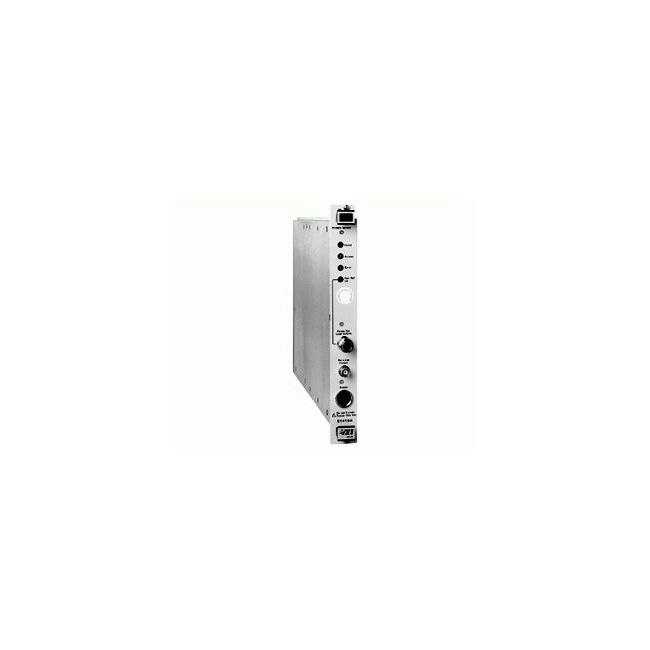

Keysight (Agilent) E1416A
Power Meter 1slot
VXI C-Size Module Form Factor
16 Channels Number of Channels
Digital Multimeter (DMM) Measurement Function
Up to 6½ Digits Resolution
100 mV to 300 V DC Voltage Range
| Attribute | Value |
|---|---|
| Form Factor | VXI C-Size Module |
| Number of Channels | 16 Channels |
| Measurement Function | Digital Multimeter (DMM) |
| Resolution | Up to 6½ Digits |
| DC Voltage Range | 100 mV to 300 V |
| AC Voltage Range | 100 mV to 300 V |
| Resistance Measurement | 100 Ω to 100 MΩ (2-wire and 4-wire) |
| Scanning Speed | Up to 500 readings per second |
| Interface/Bus | VXIbus (MXI/GPIB Compatible) |
| Operating Temperature | 0°C to 55°C |
| Model | E1416A |
|---|
The Keysight (Agilent) E1416A is a C-size, 1-slot VXI module offering high-performance average power measurements using 8480 series sensors, with an accuracy of ±0.02dB or ±0.5% and frequency coverage from 100 kHz to 110 GHz.
It features a 1 mW reference and supports a power range of -70 to +44 dBm depending on the sensor, delivering reliable, precise readings in a programmable format.
Testwall can supply the used Keysight (Agilent) E1416A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1416A.
