Keysight (Agilent) E1433A
| Attribute | Value |
|---|---|
| Number of Input Channels | 8 |
| Sampling Rate | Up to 51.2 kSa/s per channel |
| Frequency Range | DC to 20 kHz |
| Dynamic Range | 90 dB |
| Input Voltage Range | ±10 V peak |
| ADC Resolution | 24-bit |
| Anti-Aliasing Filter | Built-in digital anti-aliasing filter (brick-wall) |
| Form Factor / Bus Interface | VXI (VME eXtensions for Instrumentation), C-size module |
| Input Coupling | AC/DC selectable per channel |
| Trigger Modes | Free run, external trigger, software trigger |
Keysight Technologies E1433A Options:
- E1433B - AYF - Tachometer Option (Optional Dual Tachometer input)
- E1433B - 1D4 - Optional Arbitrary Source (16-bit arbitrary source, equivalent to channel 1 of E1434A)
- E1433B - 1D1 - Real-time Octave Measurement Option (1/1 or one-third octave measurements)
- E1433B - UGV - Local Bus Option (high-speed local bus for data transfer to E1562D/E Data Disk)
| Model | E1433A |
|---|

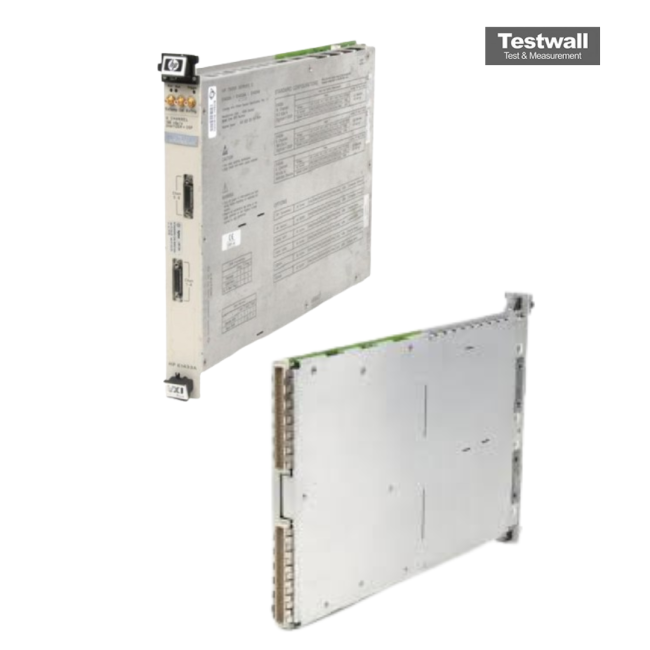

The Keysight (Agilent) E1433A is a 1-slot, C-size VXI module featuring 8 channels with a sampling rate of up to 196,608 samples/sec per channel. It includes transducer signal conditioning, anti-alias protection, and digital signal processing with up to 32 MB RAM for superior system performance.
This digitizer is designed for precise signal acquisition and high-speed measurement computations, supporting either one or two 4-channel assemblies to scale up to 8 total inputs.
Testwall can supply the used Keysight (Agilent) E1433A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1433A.
