Keysight (Agilent) E1434A
| Attribute | Value |
|---|---|
| Number of Channels | 4 Channels |
| Sample Rate | Up to 51.2 kSa/s per channel |
| Frequency Range | DC to 20 kHz |
| Dynamic Range | 110 dB |
| Input Voltage Range | ±10 V peak |
| ADC Resolution | 24-bit |
| Anti-Aliasing Filter | Built-in digital anti-aliasing filter |
| Form Factor / Bus Interface | VXI C-Size Module |
| Input Impedance | 1 MΩ |
| Operating Temperature | 0°C to 55°C |
Keysight Technologies E1434A Options:
- E1434A - 1D4 - Fifth source channel (adds one additional source channel to the E1434A)
- E1434A - 1DM - Delete two source channels (for applications not needing four channels)
- E1434A - UGV - Local bus option
| Model | E1434A |
|---|

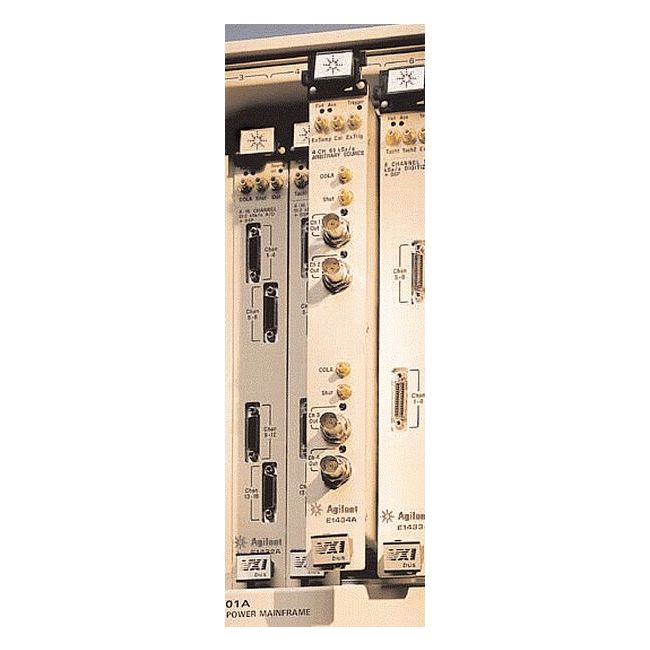

The Keysight (Agilent) E1434A is a 4-Channel 65 kSamples/sec Arbitrary Source designed for advanced waveform generation. It integrates on-board waveform creation with continuous arbitrary playback, supporting sine, random, burst, swept-sine, and continuous arbitrary output types. With bandwidths of 0–25.6 kHz (16-bit) and 0–6.4 kHz (20-bit), and output ranges from 80 mV to 10 V, it excels in both mechanical and electrical multi-channel stimulus-response applications.
Features include a COLA for output monitoring, shutdown input for emergency output ramp-down, and compatibility with E1432A/E1433B digitizers.
Testwall can supply the used Keysight (Agilent) E1434A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1434A.
