Keysight (Agilent) E1563A
| Attribute | Value |
|---|---|
| Form Factor | VXI Module (C-Size) |
| Number of Input Channels | 16 Single-Ended / 8 Differential |
| Sampling Rate | Up to 1 MSa/s per channel |
| Resolution | 16-bit ADC |
| Input Voltage Range | ±10 V |
| Input Impedance | 1 MΩ |
| Bandwidth | 250 kHz |
| Trigger Modes | Internal, External, Software |
| Interface/Bus | VXIbus (MXI or Embedded Controller Compatible) |
| Operating Temperature Range | 0°C to 55°C |
Keysight Technologies E1563A Options:
- E1563A - 0B1 - Add Manual Set
- E1563A - W01 - Convert Standard Warranty to On-site
| Model | E1563A |
|---|

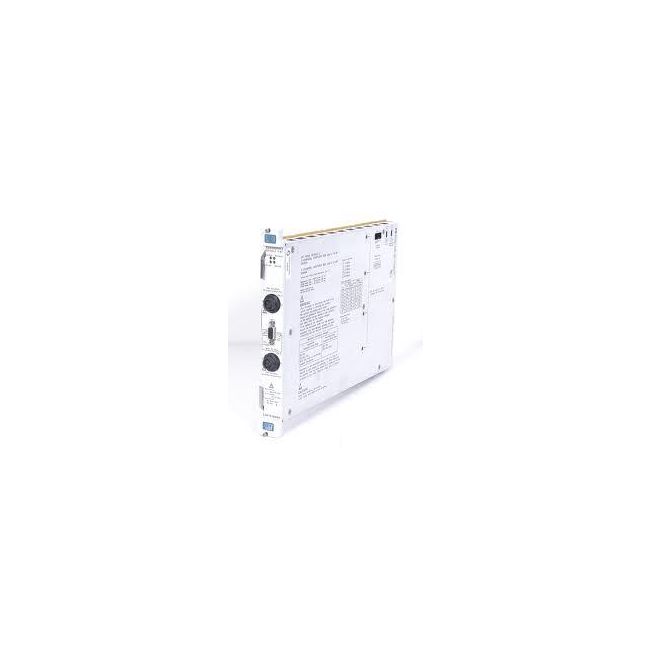

The Keysight (Agilent) E1563A is a high-performance C-size, 1-slot VXI digitizer module tailored for high-speed data acquisition in electronic production testing and electromechanical design. It features two independent channels with 14-bit A/D converters and an 800 kSa/s sampling rate, providing precise, isolated measurements even in noisy environments.
This module excels at capturing transient waveforms and is ideal for electronic production tests and design characterization where accuracy and independence of signal channels are crucial.
Testwall can supply the used Keysight (Agilent) E1563A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E1563A.
