Keysight (Agilent) E2669A
| Attribute | Value |
|---|---|
| Product Family | Infiniium Oscilloscope Accessories |
| Function | Differential Probe Head for High-Speed Serial and Memory Bus Analysis |
| Compatible Oscilloscopes | Keysight Infiniium Series Oscilloscopes |
| Input Impedance | 100 kΩ differential |
| Bandwidth | Up to 7 GHz |
| Attenuation Ratio | 10:1 |
| Common Mode Rejection Ratio (CMRR) | >30 dB at 1 GHz |
| Operating Temperature Range | 0°C to 55°C |
| Connector Type | SMA connector interface compatible with differential probe amplifier |
| Application | DDR Memory Bus, High-Speed Serial Signal Probing, and Differential Signal Measurements |
Keysight (Agilent) E2669A Options:
- E2669A - E2668A - InfiniiMax connectivity kit for single-ended measurements. Includes one single-ended browser, one solder-in probe heads and one socketed probe heads. Includes all necessary accessories.
- E2669A - E2675A - InfiniiMax differential browser probe head and accessories. Includes 20 replaceable tips and ergonomic handle. Order E2658A for replacement accessories.
- E2669A - E2676A - InfiniiMax single-ended browser probe head and accessories. Includes 2 ground collar assemblies, 10 replaceable tips, a ground lead socket and ergonomic handle. Order E2663A for replacement accessories.
- E2669A - E2677A - InfiniiMax differential solder-in probe head and accessories. Includes 20 full bandwidth and 10 medium bandwidth damping resistors. Order E2670B for replacement accessories.
- E2669A - E2678B - InfiniiMax single-ended/differential socketed probe head and accessories. Includes 48 full bandwidth damping resistors, 6 damped wire accessories, 4 square pin sockets and socket heatshrink. Order E2671A for replacement accessories.
- E2669A - E2679A - InfiniiMax single-ended solder-in probe head and accessories. Includes 16 full bandwidth and 8 medium bandwidth damping resistors and 24 zero ohm ground resistors. Order E2672A for replacement accessories.
- E2669A - 1130A - 1.5 GHz InfiniiMax Probe Amplifier
- E2669A - 1131A - 3.5 GHz InfiniiMax Probe Amplifier
- E2669A - 1132A - 5 GHz InfiniiMax Probe Amplifier
- E2669A - 1134A - 7 GHz InfiniiMax Probe Amplifier
| Model | E2669A |
|---|

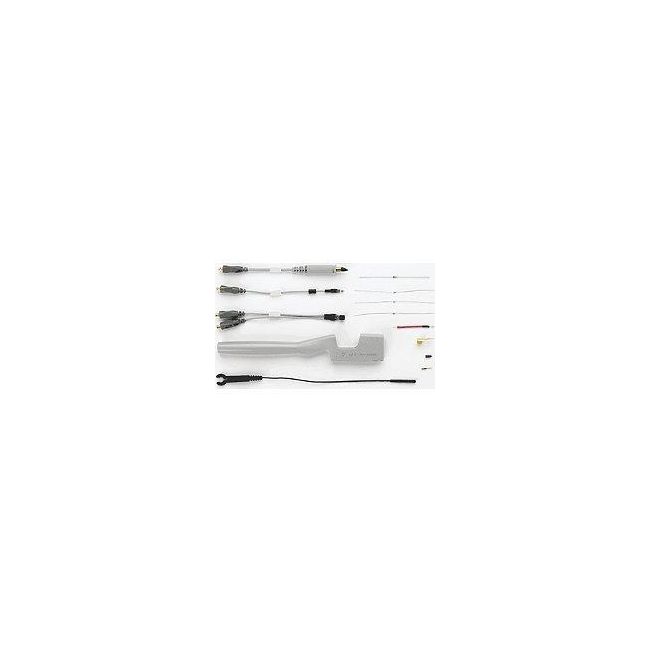

The Keysight (Agilent) E2669A Connectivity Kit is engineered for use with InfiniiMax 1130 Series probe amplifiers, providing high-precision differential and single-ended measurements. It includes a differential browser probe head, ergonomic handle, four solder-in probe heads, and two socketed probe heads for enhanced connectivity.
Ideal for high-frequency circuit diagnostics, the E2669A ensures versatile probing with a full set of accessories to accommodate different testing environments.
Testwall can supply the used Keysight (Agilent) E2669A Connectivity Kit, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E2669A Connectivity Kit.
