Keysight (Agilent) E2940A
| Attribute | Value |
|---|---|
| Product Family | PCI Bus Analyzer / Protocol Analyzer |
| Interface Type | PCI (Peripheral Component Interconnect) |
| Bus Speed Support | 33 MHz and 66 MHz PCI bus speeds |
| Bus Width | 32-bit and 64-bit PCI bus width |
| Trigger Capabilities | Advanced hardware triggering with multi-level trigger sequencing |
| Recording Depth | Deep memory capture for extended bus transaction recording |
| Operating Voltage | 3.3V and 5V PCI signaling support |
| Form Factor | PCI add-in card / external analyzer module |
| Software Compatibility | Compatible with Keysight analysis and protocol decode software |
| Operating System Support | Windows-based operating systems for analysis software |
Keysight Technologies E2940A Options:
- E2940A - #200 - Performance Optimizer: Single user license for Windows
- E2940A - #300 - PCI Exerciser: On-board 32/64 bit, 33 MHz Exerciser with Exerciser Graphical User Interface, single user license for Windows
- E2940A - #310 - System Validation Package: Graphic User Interface, single user license for Windows (PCI Exerciser option #300 must be installed)
- E2940A - #320 - C-API Interface/PPR Library: Single user license (PCI Exerciser option #300 must be installed)
| Model | E2940A |
|---|

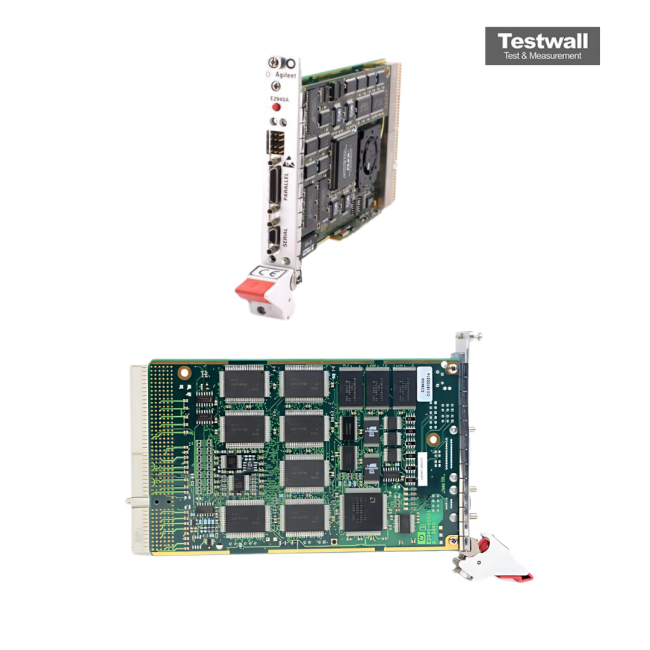

The Keysight (Agilent) E2940A is a 3U CompactPCI 66 MHz analyzer and exerciser ideal for PCI system validation, offering a 64-bit data/address analyzer, 250 ps timing resolution, 150x64K state memory, and optional PCI exerciser with 512 KB data memory.
Designed for developers and validation engineers, it supports real-time protocol checking, hot-swap functionality, RS-232 and parallel control, and 24-pattern triggers for high-precision PCI testing.
Testwall can supply the used Keysight (Agilent) E2940A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E2940A.
