Keysight (Agilent)
Keysight (Agilent) E3620A
Dual Output DC Power Supply 50W
0 to 25 V per output (dual output) Output Voltage Range
0 to 1 A per output Output Current Range
2 (Dual Output) Number of Outputs
≤ 2 mV (from no load to full load) Load Regulation (Voltage)
≤ 2 mV (for ±10% line change) Line Regulation (Voltage)
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 25 V per output (dual output) |
| Output Current Range | 0 to 1 A per output |
| Number of Outputs | 2 (Dual Output) |
| Load Regulation (Voltage) | ≤ 2 mV (from no load to full load) |
| Line Regulation (Voltage) | ≤ 2 mV (for ±10% line change) |
| Ripple and Noise (RMS) | ≤ 0.5 mV rms (20 Hz to 20 MHz) |
| Input Voltage (AC) | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature Range | 0°C to 40°C |
| Dimensions (W x H x D) | 212 mm x 133 mm x 348 mm (8.4 x 5.2 x 13.7 in) |
| Weight | 7.5 kg (16.5 lbs) |
Keysight Technologies E3620A Options:
- E3620A - 0E3 - 230 Vac ±10%
- E3620A - 0EM - 115 Vac ±10%
- E3620A - 0E9 - 100 Vac ±10%
- E3620A - 1CM - Rack-mount kit
- E3620A - 0L2 - Extra Manual
| Model | E3620A |
|---|

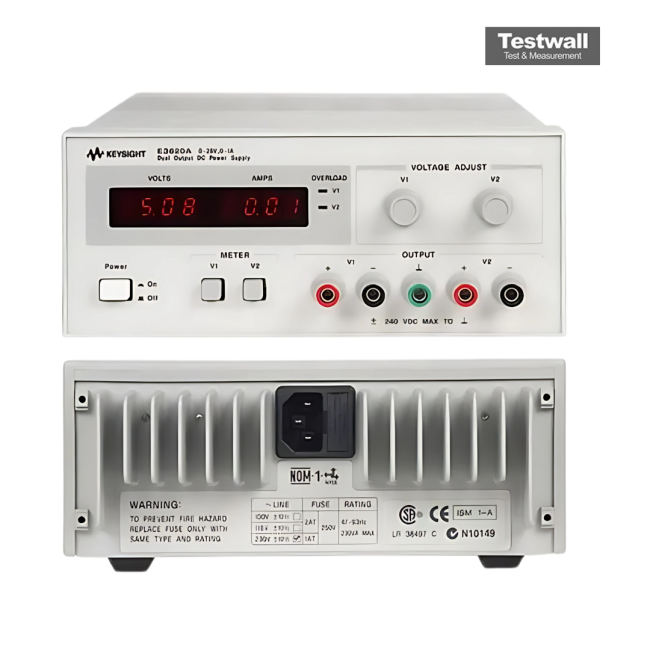

The Keysight (Agilent) E3620A is a 50W dual-output DC power supply with two independent 0–25V, 0–1A outputs, ideal for general-purpose benchtop testing. It features compact design, low noise, and high regulation accuracy.
Designed for reliability, the E3620A offers precise voltage and current control, with ripple as low as 350 µV rms and excellent load/line regulation of 0.01% + 2mV.
Testwall can supply the used Keysight (Agilent) E3620A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E3620A.
