Keysight (Agilent)

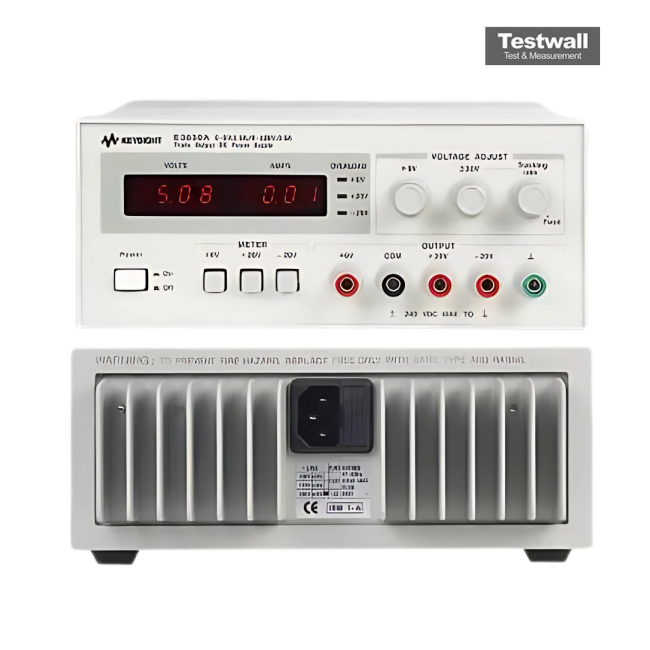

Keysight (Agilent) E3630A
Triple-Output Power Supply
3 Outputs: 0 to +6V/2.5A, 0 to +25V/1A, 0 to -25V/1A Output Channels
35 Watts Maximum Total Power Output
Less than 2 mV for 0 to Full Load Change Load Regulation (Voltage)
Less than 0.5 mV for ±10% Line Change Line Regulation (Voltage)
Less than 1 mV rms, 5 mV peak-to-peak (20 Hz to 20 MHz) Ripple and Noise (Voltage)
| Attribute | Value |
|---|---|
| Output Channels | 3 Outputs: 0 to +6V/2.5A, 0 to +25V/1A, 0 to -25V/1A |
| Total Power Output | 35 Watts Maximum |
| Load Regulation (Voltage) | Less than 2 mV for 0 to Full Load Change |
| Line Regulation (Voltage) | Less than 0.5 mV for ±10% Line Change |
| Ripple and Noise (Voltage) | Less than 1 mV rms, 5 mV peak-to-peak (20 Hz to 20 MHz) |
| Load Regulation (Current) | Less than 2 mA for 0 to Full Load Change |
| Display Type | Built-in Analog Meter for Voltage and Current Monitoring |
| Input Voltage | 100/120/220/240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Dimensions (W x H x D) | 253 mm x 104 mm x 374 mm (9.97 in x 4.09 in x 14.72 in) |
Keysight Technologies E3630A Options:
- E3630A - 0E3 - 230 Vac ±10%
- E3630A - 0EM - 115 Vac ±10%
- E3630A - 0E9 - 100 Vac ±10%
- E3630A - 0L2 - Extra Manual
| Model | E3630A |
|---|
The Keysight (Agilent) E3630A is a 35W triple output DC power supply delivering 0–6V at 2.5A, ±20V at 0.5A. It offers excellent regulation, low noise, and overload indication, ideal for bench testing.
With high precision (10 mV/10 mA resolution), stable output, and ripple as low as 350 µV rms, the E3630A suits manual test applications needing consistent power delivery.
Testwall can supply the used Keysight (Agilent) E3630A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E3630A.
