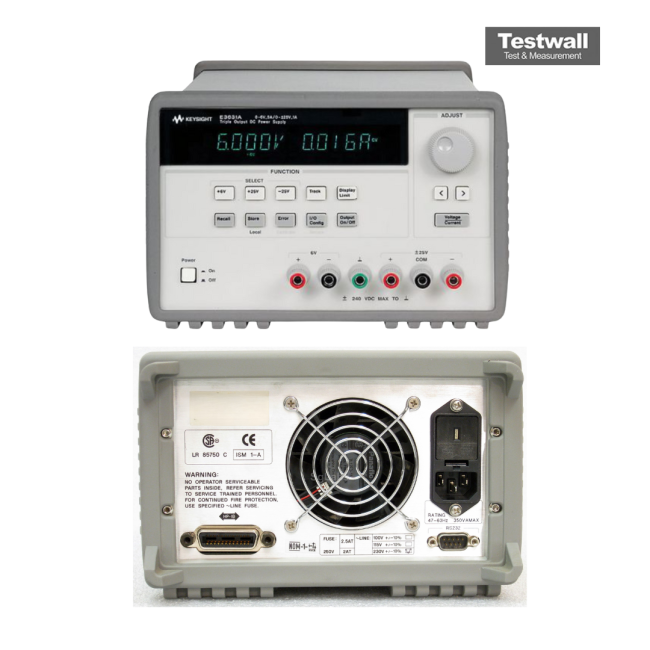

Keysight (Agilent) E3631A
| Attribute | Value |
|---|---|
| Output Channels | 3 Outputs (Triple Output) |
| Output Voltage Range | 0 to +6V, 0 to +25V, 0 to -25V |
| Maximum Output Current | 5A (6V output), 1A (±25V outputs) |
| Maximum Output Power | 80W Total |
| Load Regulation (Voltage) | ≤ 5mV (6V), ≤ 15mV (25V) |
| Line Regulation (Voltage) | ≤ 5mV (6V), ≤ 15mV (25V) |
| Ripple and Noise (RMS) | ≤ 0.35mV RMS (6V), ≤ 0.5mV RMS (25V) |
| Interface/Connectivity | GPIB (IEEE-488) Interface Standard |
| AC Input Power | 100/120/220/240V AC, 47-63Hz, 150VA Maximum |
| Operating Temperature Range | 0°C to 40°C |
Keysight Technologies E3631A Options:
- E3631A - 0E3 - 230 Vac ± 10%
- E3631A - 0EM - 115 Vac ± 10%
- E3631A - 0E9 - 100 Vac ± 10%
- E3631A - 0L2 - Extra manual sets
- E3631A - 1CM - Rack-mount kit
| Model | E3631A |
|---|
The Keysight (Agilent) E3631A triple output DC power supply delivers 80 W power with precision across three outputs: 0-6 V/5 A, ±25 V/1 A. It features low ripple and noise, built-in measurements, and is programmable via GPIB and RS232. Designed for compact benchtop use, it ensures reliable performance for general-purpose testing needs.
Ideal for engineers and technicians, the E3631A supports clean DC power for a variety of lab and production applications with exceptional voltage and current programming accuracy.
Testwall can supply the used Keysight (Agilent) E3631A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E3631A.
