Keysight (Agilent) E3634A
| Attribute | Value |
|---|---|
| Output Voltage Range | 0 to 25V / 0 to 50V (dual range) |
| Output Current Range | 0 to 7A (25V range) / 0 to 4A (50V range) |
| Maximum Output Power | 200W |
| Load Regulation (Voltage) | ≤ 2 mV (CV mode) |
| Load Regulation (Current) | ≤ 4 mA (CC mode) |
| Ripple and Noise (RMS) | ≤ 1 mV rms (20 Hz to 20 MHz) |
| Programming Accuracy (Voltage) | ±(0.05% + 10 mV) |
| Programming Accuracy (Current) | ±(0.2% + 10 mA) |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz, 400W max |
| Interface | GPIB (IEEE-488) and RS-232 standard |
Keysight Technologies E3634A Options:
- E3634A - 0E3 - 230 Vac +/- 10%
- E3634A - 0E9 - 100 Vac +/- 10%
- E3634A - W50 - Additional 2-year warranty (5-year total)
- E3634A - 910 - Extra manual sets
| Model | E3634A |
|---|

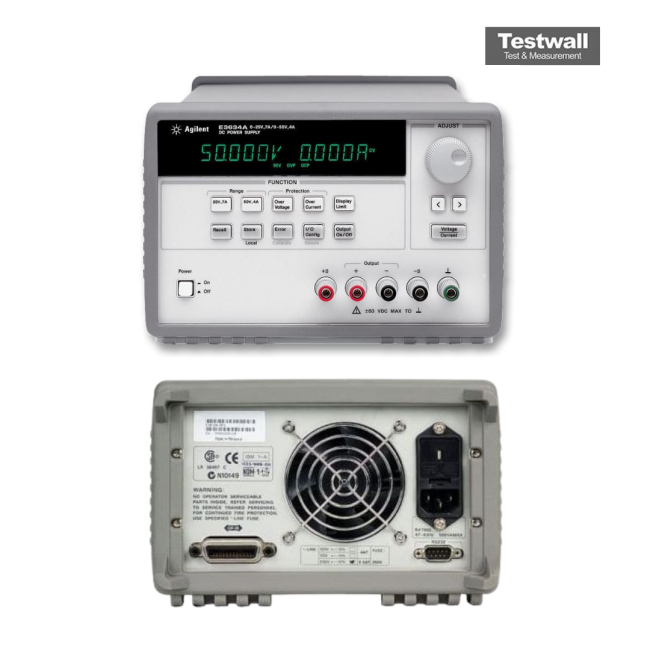

The Keysight (Agilent) E3634A is a 200W, single output DC power supply offering dual range outputs: 0–25 V at 7 A and 0–50 V at 4 A. It features low output ripple and noise (<500 µVrms/3 mVp-p), accurate programming (0.05% + 10 mV), and built-in GPIB/RS232 interfaces. With excellent voltage and current readback accuracy, it’s optimized for both manual and basic automated testing.
Its compact design is ideal for benchtop use and it includes essential programmable features to reduce test time and improve measurement quality.
Testwall can supply the used Keysight (Agilent) E3634A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E3634A.
