Keysight (Agilent) E4209B
| Attribute | Value |
|---|---|
| Product Series | E4209B |
| Instrument Type | Downconverter Module |
| Frequency Range | 2 GHz to 26.5 GHz |
| IF Output Frequency | 3.8 GHz to 8.0 GHz |
| LO Frequency Range | 2 GHz to 18.5 GHz |
| Conversion Loss | Typically 8 dB |
| Input Power Range | -40 dBm to +10 dBm |
| Connector Type | 2.4 mm (f) RF Input, SMA (f) IF Output |
| Compatible Platform | Keysight M9703A AXIe High-Speed Digitizer System |
| Operating Temperature | 0°C to 55°C |
| Model | E4209B |
|---|

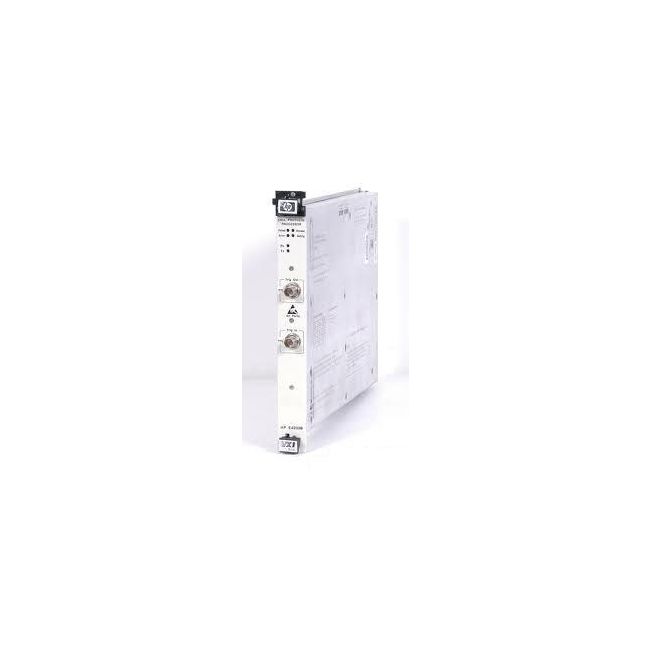

The Keysight (Agilent) E4209B Cell Protocol Processor (CPP) delivers advanced real-time and post-processing testing for ATM protocols. It supports simulation and monitoring for ATM, F4, F5 OAM, and AAL1. With the ability to handle traffic from 1.5 Mb/s to 622 Mb/s using modules like E1616A and E1697A, it generates eight streams of custom ATM traffic. Real-time measurements are synchronized across test devices, ensuring accurate diagnostics.
Designed for precision in protocol analysis, the E4209B enables upper-layer testing through optional software, offering flexibility and detailed traffic control.
Testwall can supply the used Keysight (Agilent) E4209B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4209B.
