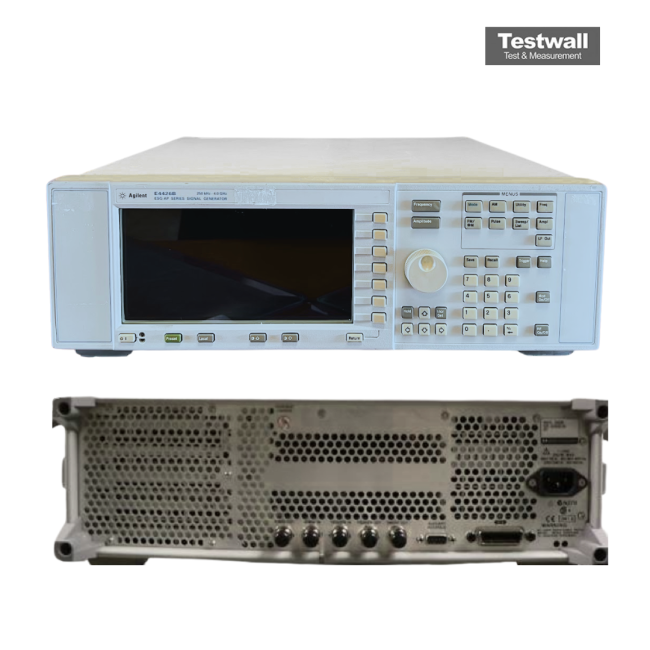

Keysight (Agilent) E4426B
| Attribute | Value |
|---|---|
| Frequency Range | 250 kHz to 4 GHz |
| Modulation | AM, FM, ΦM, pulse |
| Frequency Resolution | 0.01 Hz |
| Timebase Aging | < ±0.1 ppm per year |
| RF Output Connector | Type-N female, front panel |
| Output Power | -136 to +7 dBm |
| SSB Phase Noise | < -130 dBc/Hz at 1 GHz, 20 kHz offset (-134 dBc/Hz typ.) |
| Level Accuracy | ±0.5 dB (spec.), ±0.9 dB above 2 GHz (spec.) at +7 to -120 dBm |
| Harmonics | < -30 dBc at ≤ +4 dBm |
| Sweep Modes | step sweep, list mode (2 to 401 points) |
| Interfaces | GPIB, RS-232 |
| Dimensions | 426 × 133 × 432 mm |
| Weight | < 13.5 kg |
Keysight Technologies E4426B Options:
- E4426B - OB0 - Deletes the standard manual set
- E4426B - OB1 - Adds extra manual set
- E4426B - OBV - Adds service documentation, component level
- E4426B - OBW - Adds service documentation, assembly level
- E4426B - OBX - Adds service documentation, assembly and component level
- E4426B - 1CM - Adds rack mount kit, part number 5063-9214
- E4426B - 1CN - Adds front handle kit, part number 5063-9227
- E4426B - 1CP - Adds rack mount kit with handles, part number 5063-9221
- E4426B - 1E5 - Adds high-stability timebase
- E4426B - 1EM - Moves all front panel connectors to rear panel
- E4426B - UNB - Adds higher power with mechanical attenuator
- E4426B - W50 - Adds additional warranty for a total of five years
The Keysight (Agilent) E4426B RF Signal Generator offers high spectral purity and comprehensive analog modulation capabilities including AM, FM, phase, and pulse modulation. It features a flexible architecture with upgrade paths, superior level accuracy, and both electronic and mechanical attenuator options.
Ideal for receiver and component testing, the E4426B also supports step sweep functions and includes a built-in function generator for versatile use in local oscillator applications.
Testwall can supply the used Keysight (Agilent) E4426B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4426B.
Options and configurations
- Output Power: -136 to +7 dBm (+13 dBm with Opt. UNB; -4 dB with Opt. 1E6)
- Harmonics: < -30 dBc at ≤ +4 dBm (+7.5 dBm with Opt. UNB)
