Keysight (Agilent) E4915A
1 MHz to 110 MHz Frequency Range
10 mVrms to 1 Vrms Output Voltage
Cs-Rs, Cp-Rp, Cp-D, Cs-D, |Z|-θ, |Y|-θ, L-Q, L-Rs Measurement Parameters
±0.8% Basic Impedance Accuracy
100 mΩ to 100 MΩ Impedance Range
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 110 MHz |
| Output Voltage | 10 mVrms to 1 Vrms |
| Measurement Parameters | Cs-Rs, Cp-Rp, Cp-D, Cs-D, |Z|-θ, |Y|-θ, L-Q, L-Rs |
| Basic Impedance Accuracy | ±0.8% |
| Impedance Range | 100 mΩ to 100 MΩ |
| Interface | GPIB (IEEE-488) |
| Display | LCD with numeric and sweep display modes |
| Measurement Speed | Fast, Medium, and Slow measurement modes available |
| DC Bias Voltage | 0 V to ±40 V |
| Power Requirements | 100/120/220/240 VAC, 47 to 63 Hz, approximately 150 VA |
| Model | E4915A |
|---|

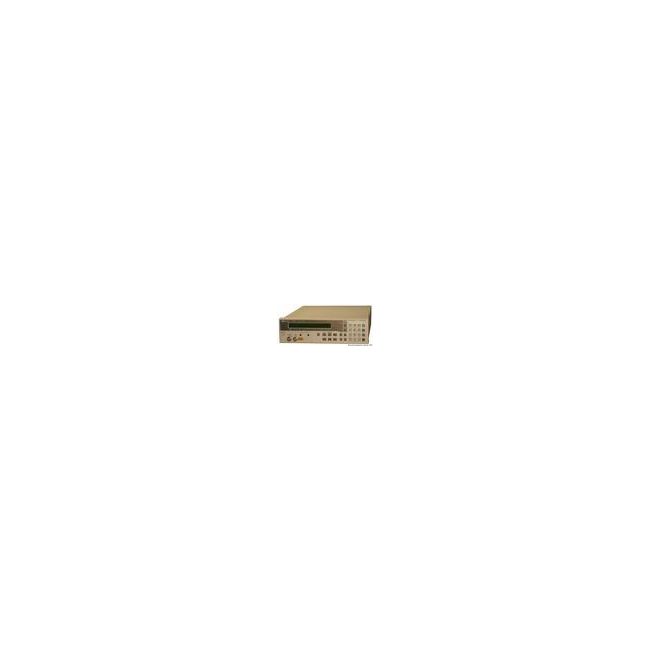

The Keysight (Agilent) E4915A is a high-precision crystal impedance meter, ideal for evaluating crystal oscillators and resonators. It offers accurate impedance parameter measurements critical for component development and quality control.
Designed for lab and production use, the E4915A ensures stable, consistent results across crystal measurement scenarios.
Testwall can supply the used Keysight (Agilent) E4915A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E4915A.
