Keysight (Agilent)
Keysight (Agilent) E5062A-150

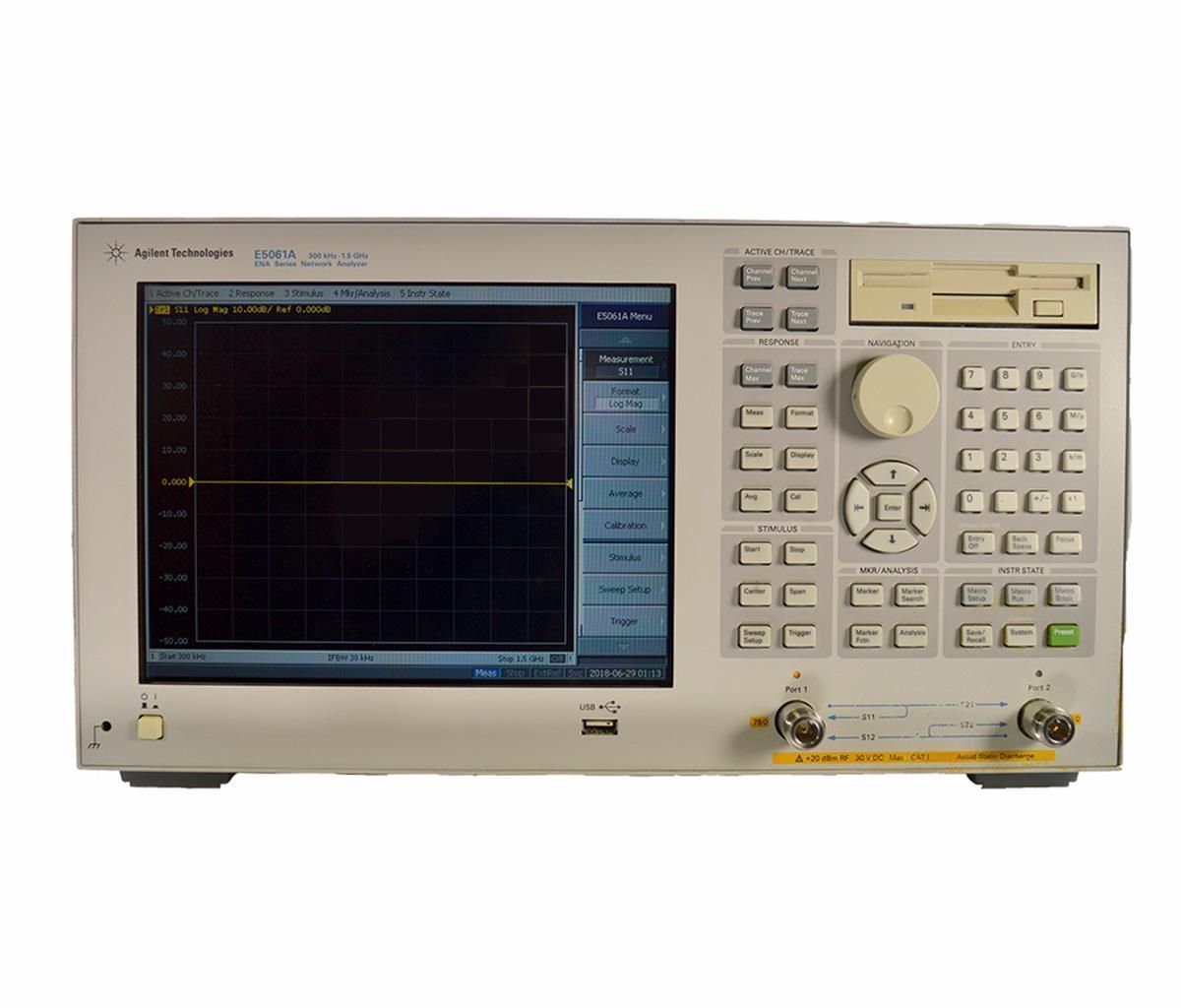

2-port, 300 kHz to 3 GHz ENA-L Network Analyzer, Option 150 (representative image)
300 kHz to 3 GHz Frequency Range
2 Number of Ports
120 dB (spec.), 130 dB (typ.) Dynamic Range
-5 dBm … +10 dBm Output Power Range
Option 150: T/R test set (transmission/reflection) Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2 |
| Dynamic Range | 120 dB (spec.), 130 dB (typ.) |
| Output Power Range | -5 dBm … +10 dBm |
| Configuration | Option 150: T/R test set (transmission/reflection) |
| Impedance | 50 Ω |
| Connector Type | Type-N (f), 50 Ω |
| IF Bandwidth | 10 Hz … 30 kHz |
| Number of Points | max. 1,601 |
| Trace Noise | 0.005 dB rms |
| Measurement Parameters | S11, S21 (T/R) |
| Display | 10.4" LCD, 640×480 |
| Interfaces | LAN, USB, GPIB, Handler I/O, VGA |
| Series | ENA-L |
The Keysight (Agilent) E5062A-150 is a 2-port ENA-L vector network analyzer covering 300 kHz to 3 GHz. Option 150 configuration: T/R test set (transmission/reflection).
Testwall can supply the used Keysight (Agilent) E5062A-150, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5062A-150.
