Keysight (Agilent)
Keysight (Agilent) E5070B-213

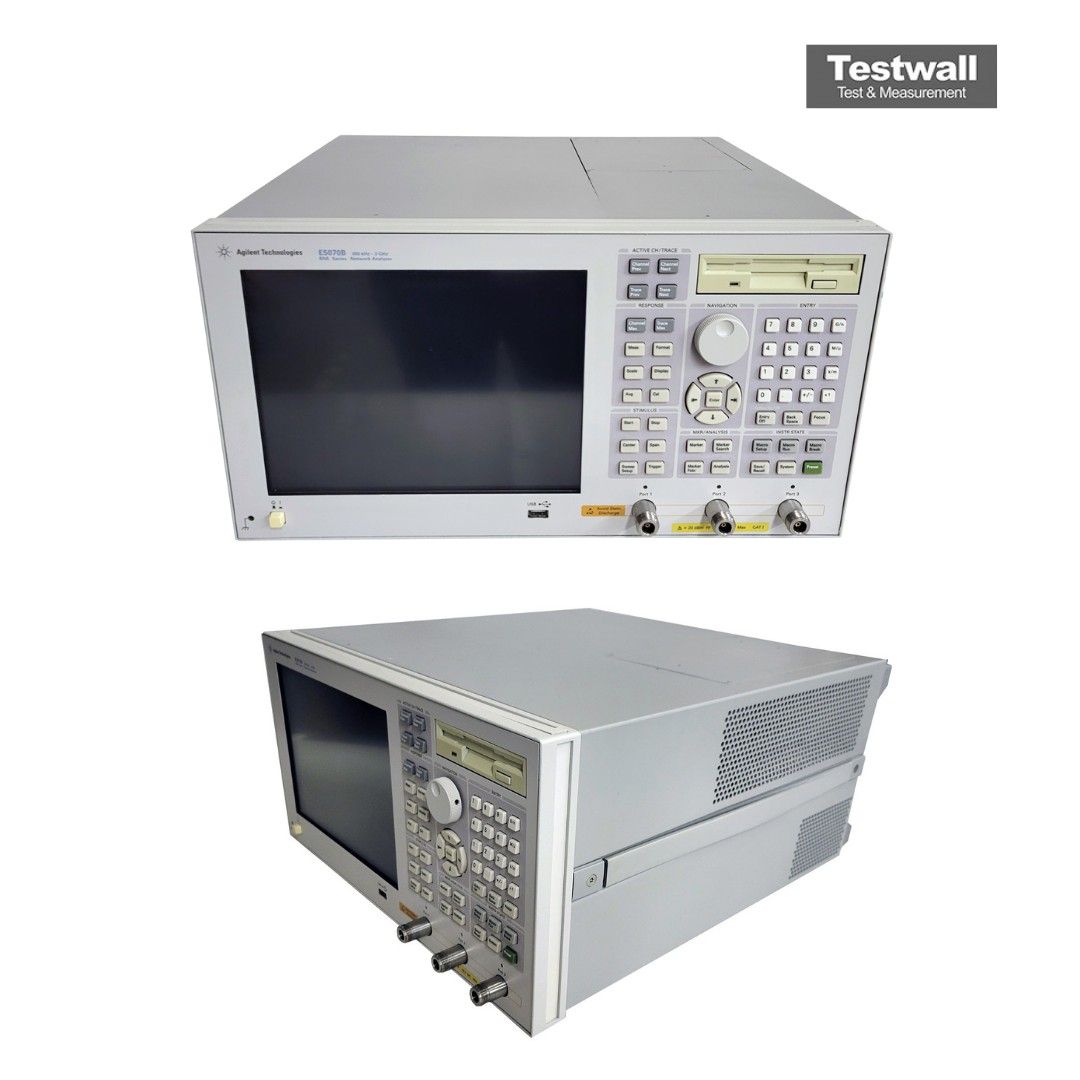

2-port, 300 kHz to 3 GHz ENA Network Analyzer, Option 213 (representative image)
300 kHz to 3 GHz Frequency Range
2 Number of Ports
122 dB (spec.), 125 dB (typ.) Dynamic Range
-15 dBm … +10 dBm Output Power Range
Option 213: full S-parameter test set, standard power range Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 3 GHz |
| Number of Ports | 2 |
| Dynamic Range | 122 dB (spec.), 125 dB (typ.) |
| Output Power Range | -15 dBm … +10 dBm |
| Configuration | Option 213: full S-parameter test set, standard power range |
| Impedance | 50 Ω |
| Connector Type | Type-N (f), 50 Ω |
| IF Bandwidth | 10 Hz … 100 kHz |
| Number of Points | max. 20,001 |
| Trace Noise | 0.001 dB rms (typ.) |
| Measurement Parameters | S-parameters, mixed-mode S-parameters, group delay |
| Display | 10.4" LCD, 640×480 |
| Interfaces | LAN, USB, GPIB, Handler I/O |
| Series | ENA |
Keysight (Agilent) E5070B-213 Options:
- E5070B - 214 - 2-port configuration
- E5070B - 314 - 3-port configuration
- E5070B - 414 - 4-port configuration
- E5070B - 008 - Frequency-offset measurement capability
- E5070B - 010 - Time domain analysis
- E5070B - 016 - Touch screen interface
- E5070B - UNQ - Standard frequency reference (±5 ppm, 5°C to 40°C)
- E5070B - 1E5 - High-stability frequency reference (±0.05 ppm, 23°C ± 5°C)
The Keysight (Agilent) E5070B-213 is a 2-port ENA vector network analyzer covering 300 kHz to 3 GHz. Option 213 configuration: full S-parameter test set, standard power range.
Testwall can supply the used Keysight (Agilent) E5070B-213, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5070B-213.
