Keysight (Agilent)

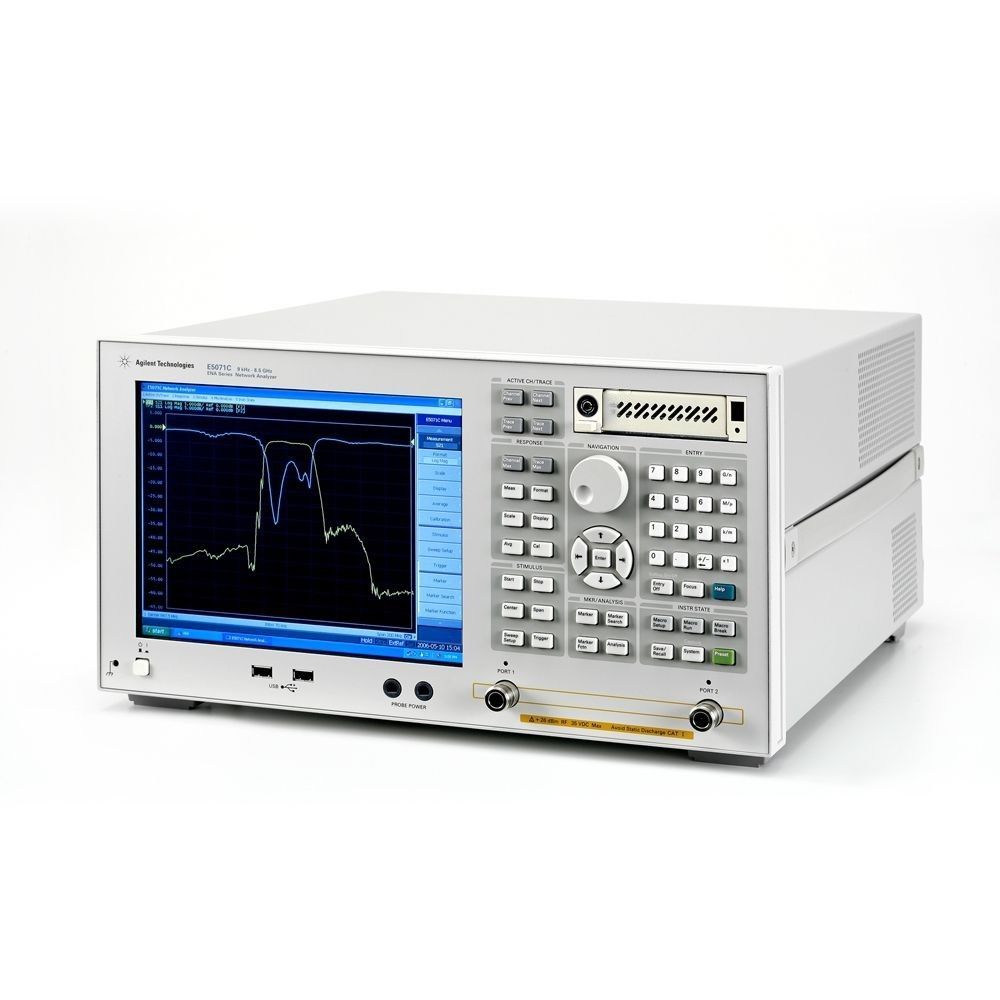

Keysight (Agilent) E5071C-280 9KHz - 8.5GHz Network Analyser (2 Port)
2-port, 8.5 GHz ENA Network Analyzer (S-Parameter)
9 kHz to 8.5 GHz Frequency Range
2 Number of Ports
Up to 132 dB Dynamic Range
-85 dBm to +10 dBm Output Power Range
0.004 dB rms (at 10 Hz IF bandwidth) Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 9 kHz to 8.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | Up to 132 dB |
| Output Power Range | -85 dBm to +10 dBm |
| Trace Noise | 0.004 dB rms (at 10 Hz IF bandwidth) |
| Number of Data Points | 2 to 20,001 points per sweep |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase, and mixed-mode S-parameters |
| Connector Type | N-Type (50 Ohm) |
| IF Bandwidth | 1 Hz to 1 MHz |
| Display | 10.4-inch XGA color LCD touchscreen |
Keysight Technologies E5071C-280 9KHz - 8.5GHz Network Analyser (2 Port) Options:
- E5071C-280 - UNQ - Standard stability time base
- E5071C-280 - 1E5 - High stability time base
- E5071C-280 - 017 - Removable hard disk drive
- E5071C-280 - 019 - Standard hard disk drive
- E5071C-280 - 008 - Frequency offset mode
- E5071C-280 - TDR - Enhanced time domain analysis
- E5071C-280 - 010 - Time domain analysis
- E5071C-280 - 790 - Measurement Wizard Assistant software
- E5071C-280 - 1CM - Rack mount kit
- E5071C-280 - 1CN - Front handle kit
- E5071C-280 - 1CP - Rack mount and front handle kit
- E5071C-280 - 810 - Add keyboard
- E5071C-280 - 820 - Add mouse
- E5071C-280 - 1A7 - ISO 17025 compliant calibration
- E5071C-280 - A6J - ANSI Z540 compliant calibration
| Model | E5071C-280 |
|---|
The Keysight (Agilent) E5071C-280 Network Analyzer is a high-performance two-port VNA spanning 9 kHz to 8.5 GHz, optimized for manufacturing with a >123 dB dynamic range and ~41 ms sweep speed. It supports precision bias-tee and time-domain analysis.
Designed with integrated VBA tools and featuring GPIB, LAN, and USB ports, it enhances test automation and throughput in demanding RF applications.
Testwall can supply the used Keysight (Agilent) E5071C-280, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5071C-280.
