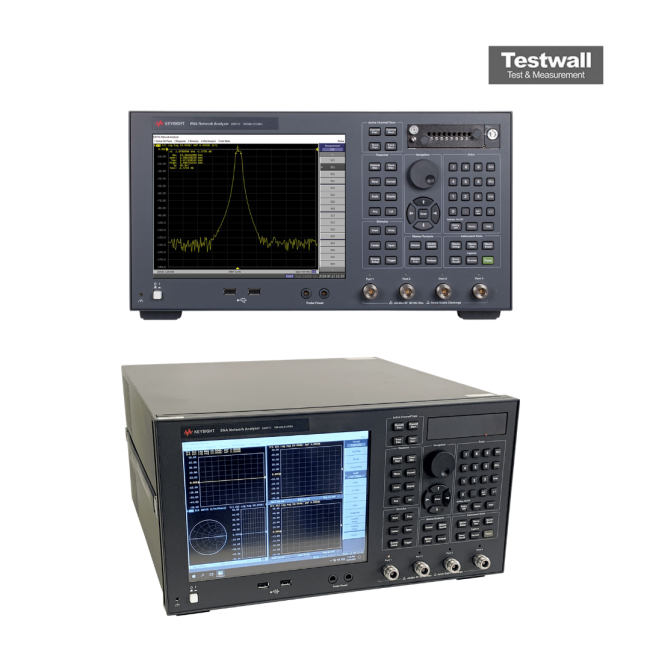

Keysight (Agilent) E5071C 4.5GHz
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 4.5 GHz |
| Number of Ports | 2 or 4 ports |
| Dynamic Range | 130 dB (typical) |
| Output Power Range | -55 dBm to +10 dBm |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase, and more |
| IF Bandwidth | 1 Hz to 1 MHz |
| Number of Data Points | 2 to 20,001 points per sweep |
| Display | 10.4-inch XGA color LCD touchscreen |
| Connector Type | N-type 50 Ohm (standard) |
| Interface/Connectivity | GPIB, USB, LAN (LXI compliant) |
Keysight (Agilent) E5071C 4.5GHz Options:
- E5071C - 230 - 2-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
- E5071C - 235 - 2-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
- E5071C - 240 - 2-port test set, 9 kHz to 4.5 GHz without bias tees
- E5071C - 245 - 2-port test set, 100 kHz to 4.5 GHz with bias tees
- E5071C - 260 - 2-port test set, 9 kHz to 6.5 GHz without bias tees
- E5071C - 265 - 2-port test set, 100 kHz to 6.5 GHz with bias tees
- E5071C - 280 - 2-port test set, 9 kHz to 8.5 GHz without bias tees
- E5071C - 285 - 2-port test set, 100 kHz to 8.5 GHz with bias tees
- E5071C - 430 - 4-port test set, 9 kHz to 3 GHz without bias tees (Discontinued)
- E5071C - 435 - 4-port test set, 100 kHz to 3 GHz with bias tees (Discontinued)
- E5071C - 440 - 4-port test set, 9 kHz to 4.5 GHz without bias tees
- E5071C - 445 - 4-port test set, 100 kHz to 4.5 GHz with bias tees
- E5071C - 460 - 4-port test set, 9 kHz to 6.5 GHz without bias tees
- E5071C - 465 - 4-port test set, 100 kHz to 6.5 GHz with bias tees
- E5071C - 480 - 4-port test set, 9 kHz to 8.5 GHz without bias tees
- E5071C - 485 - 4-port test set, 100 kHz to 8.5 GHz with bias tees
- E5071C - 2D5 - 2-port test set, 300 kHz to 14 GHz with bias tees
- E5071C - 4D5 - 4-port test set, 300 kHz to 14 GHz with bias tees
- E5071C - 2K5 - 2-port test set, 300 kHz to 20 GHz with bias tees
- E5071C - 4K5 - 4-port test set, 300 kHz to 20 GHz with bias tees
- E5071C - 1E5 - High stability frequency reference (oven controlled oscillator)
| Model | E5071C |
|---|
The Keysight (Agilent) E5071C ENA Series Network Analyzer (E5071C-245) offers superior RF performance from 100 kHz to 4.5 GHz, ideal for detailed S-parameters, multiport, and balance measurements. Designed with 2-port configuration, it supports extensive testing of RF components like cables, amplifiers, resonators, and frequency converters. With upgradable hardware and software, it adapts easily to evolving testing requirements.
Perfect for R&D and manufacturing applications, the E5071C enables efficient analysis in sectors like wireless communications, automotive, and medical technologies. Its scalable setup with bias tees ensures versatility for current and future needs.
Testwall can supply the used Keysight (Agilent) E5071C ENA Series Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5071C ENA Series Network Analyzer.
