Keysight (Agilent) E5071C-4D5
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 14 GHz |
| Number of Ports | 4 |
| Dynamic Range | 123 dB specified, 130 dB typical (10 Hz IFBW) |
| Output Power Range | -85 dBm to +10 dBm |
| Bias Tees | Yes, built-in |
| Measurement Parameters | S-parameters, mixed-mode (balanced) S-parameters, impedance, group delay, phase |
| IF Bandwidth | 10 Hz to 1.5 MHz |
| Number of Points | 2 to 20,001 points |
| Trace Noise | 0.004 dB rms at 70 kHz IFBW (10 MHz to 4.38 GHz) |
| Connector Type | 3.5 mm male (NMD), 50 Ohm |
| Display | 10.4-inch XGA colour LCD touchscreen |
| Interfaces | LAN, USB, GPIB, Handler I/O |
Keysight Technologies E5071C-4D5 Options:
- E5071C-4D5 - 1E5 - High stability time base
- E5071C-4D5 - UNQ - Standard stability time base
- E5071C-4D5 - 017 - Removable hard disk drive
- E5071C-4D5 - 019 - Standard hard disk drive
- E5071C-4D5 - 008 - Frequency offset mode
- E5071C-4D5 - TDR - Enhanced time domain analysis
- E5071C-4D5 - 010 - Time domain analysis
- E5071C-4D5 - 790 - Measurement Wizard Assistant software
- E5071C-4D5 - 1CM - Rack mount kit
- E5071C-4D5 - 1CN - Front handle kit
- E5071C-4D5 - 1CP - Rack mount and front handle kit
- E5071C-4D5 - 810 - Add keyboard
- E5071C-4D5 - 820 - Add mouse
- E5071C-4D5 - 1A7 - ISO 17025 compliant calibration
- E5071C-4D5 - A6J - ANSI Z540 compliant calibration

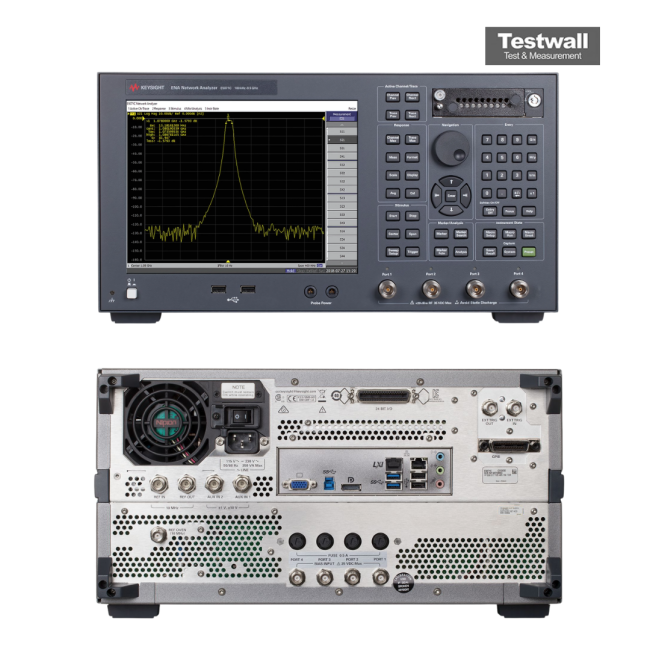

The Keysight (Agilent) E5071C‑4D5 is a wideband 4‑port ENA Network Analyzer spanning 300 kHz to 14 GHz, equipped with built‑in bias‑tees for streamlined high‑frequency testing. It delivers 123 dB dynamic range, ~0.004 dB rms trace noise, and advanced TDR and offset‑frequency capabilities for precise analysis. It supports VBA‑driven automation, fixture de‑embedding, and balanced measurement thresholds for sophisticated multiport network characterizations.
Ideal for broadband component verification, the E5071C‑4D5 is used across R&D and production for accurate S‑parameter testing and fast, repeatable results.
Testwall can supply the used Keysight (Agilent) E5071C‑4D5, fully tested. With expert support and global delivery, Testwall ensures high‑performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5071C‑4D5.
