Keysight (Agilent)
Keysight (Agilent) E5072A
2-port, 30 kHz to 8.5 GHz ENA Network Analyzer
30 kHz to 8.5 GHz Frequency Range
2 Number of Ports
123 dB (spec.), 130 dB (typ.) Dynamic Range
-85 dBm … +16 dBm Output Power Range
Configurable test set (front-panel access loops), built-in bias tees Configuration
| Attribute | Value |
|---|---|
| Frequency Range | 30 kHz to 8.5 GHz |
| Number of Ports | 2 |
| Dynamic Range | 123 dB (spec.), 130 dB (typ.) |
| Output Power Range | -85 dBm … +16 dBm |
| Configuration | Configurable test set (front-panel access loops), built-in bias tees |
| Impedance | 50 Ω |
| Connector Type | Type-N (f), 50 Ω |
| IF Bandwidth | 10 Hz … 500 kHz |
| Number of Points | max. 20,001 |
| Trace Noise | 0.003 dB rms |
| Measurement Parameters | S-parameters, group delay |
| Display | 10.4" LCD, 1024×768, touchscreen |
| Interfaces | LAN, USB, GPIB, Handler I/O |
| Series | ENA |
Available configurations
| Model | Ports | Frequency range | Configuration |
| E5072A-245 | 2 | 30 kHz to 4.5 GHz | configurable test set, built-in bias tees |
| E5072A-285 | 2 | 30 kHz to 8.5 GHz | configurable test set, built-in bias tees |
Keysight Technologies E5072A Options:
- E5072A - 245 - 2-port with configurable test set, 30 kHz to 4.5 GHz
- E5072A - 285 - 2-port with configurable test set, 30 kHz to 8.5 GHz
- E5072A - 1E5 - High stability frequency reference (oven controlled oscillator)

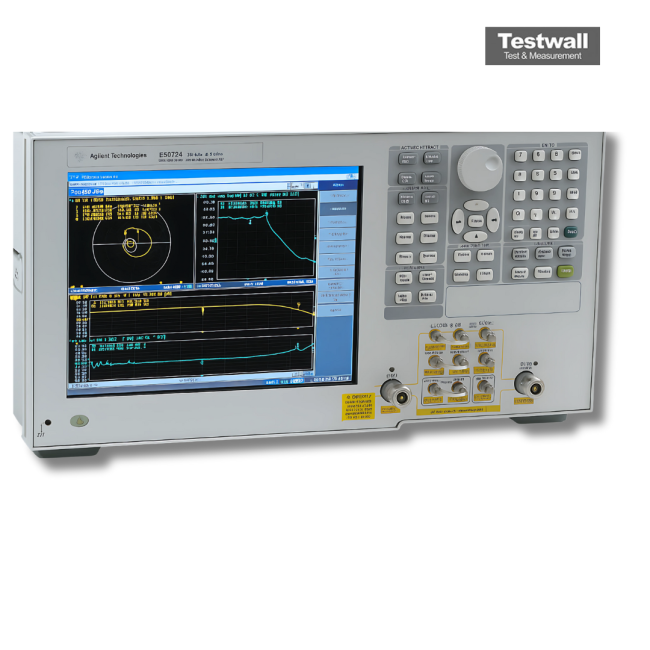

The Keysight (Agilent) E5072A is a 2-port ENA vector network analyzer covering 30 kHz to 8.5 GHz. Configuration: configurable test set (front-panel access loops), built-in bias tees.
Testwall can supply the used Keysight (Agilent) E5072A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5072A.
