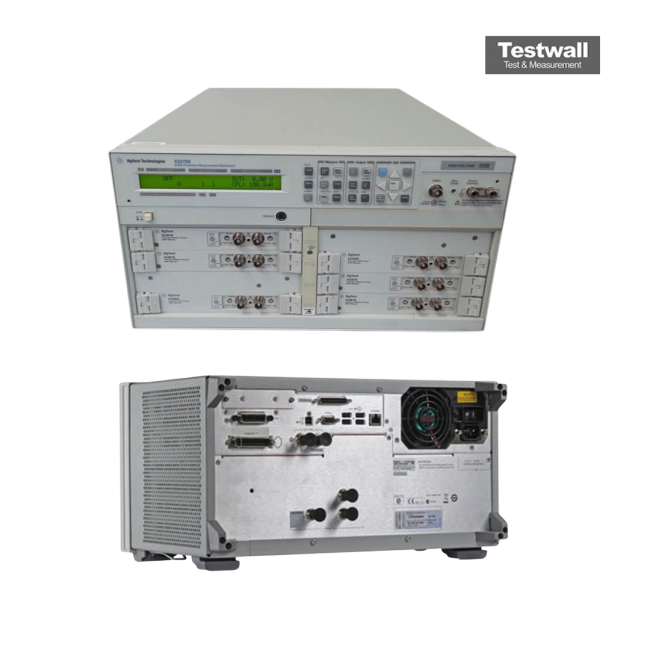

Keysight (Agilent) E5270B
| Attribute | Value |
|---|---|
| Number of Slots | 8 slots for measurement modules |
| Voltage Measurement Range | Up to ±200 V |
| Current Measurement Range | Up to ±1 A |
| Minimum Current Measurement | 10 fA (femtoampere) resolution |
| Source Monitor Unit (SMU) Types Supported | High-speed SMU (HRSMU), Medium Power SMU (MPSMU), High Power SMU (HPSMU), High Resolution SMU (HRSMU) |
| Interface | GPIB, USB, and LAN (LXI compliant) |
| Measurement Speed | High-speed sampling up to 100,000 samples/second |
| Operating Temperature | 5°C to 40°C |
| Power Requirements | 100–240 V AC, 50/60 Hz |
| Compliance | CE, CSA, IEC, and LXI Class C compliant |
Keysight (Agilent) E5270B Options:
- E5270B - 015 - 1.5m cable length
- E5270B - 030 - 3.0m cable length
- E5270B - A01 - Four MPSMU package
- E5270B - A02 - Two MPSMU and two HRSMU package
- E5270B - A03 - Four HRSMU package
- E5270B - A10 - Add one HPSMU
- E5270B - A11 - Add one MPSMU
- E5270B - A17 - Add one HRSMU
- E5270B - A28 - Add atto sense and switch unit (ASU)
- E5270BU - 080 - Precision High Power Source/Monitor Unit Module (E5280B)/ No cable included
- E5270BU - 081 - Precision Medium Power Source/Monitor Unit Module (E5281B)/ No cable included
- E5270BU - 087 - High Resolution Source/Monitor Unit Module (E5287A)/ No cable included
- E5270BU - 88A - Atto Sense And Switch Unit (E5288A ASU) with 1.5 m Triax and Dsub Cable
- E5270BU - 88B - Atto Sense And Switch Unit (E5288A ASU) with 3 m Triax and Dsub Cable
- E5270BU - SWS - EasyEXPERT Extension support
| Model | E5270B |
|---|
The Keysight (Agilent) E5270B Precision IV Analyzer features modular SMU architecture supporting up to eight slots, enabling precision measurements from 0.1 fA to 1A and 0.5 µV to 200V. It offers high-resolution ADCs and flexible configurations with HRSMU, MPSMU, and HPSMU options, integrated with EasyEXPERT group+ software for seamless test execution.
Designed for accurate current-voltage characterization of semiconductors, materials, and devices, the E5270B supports interactive and automated test workflows with real-time data analysis and storage using EasyEXPERT group+ GUI on PC.
Testwall can supply the used Keysight (Agilent) E5270B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) E5270B.
